Smart dc: pHoto eye / refLectIVe (e3K r10K4)
1. Set Photo Eye switch to LIGHT ON.
2. Turn OFF AC power.
3. Connect photo eye wiring.
NOTE: Run a jumper between photo eye -24V and
Relay COM (C2) terminals. See photo.
4. Turn ON power.
NOTE: Make sure both AC & DC switches are ON and the red battery
wire is plugged in.
5. Access the Installer Menu. Congure SENSOR
setting accordingly. For example, Eye Close,
Eye Open, or Eye Both.

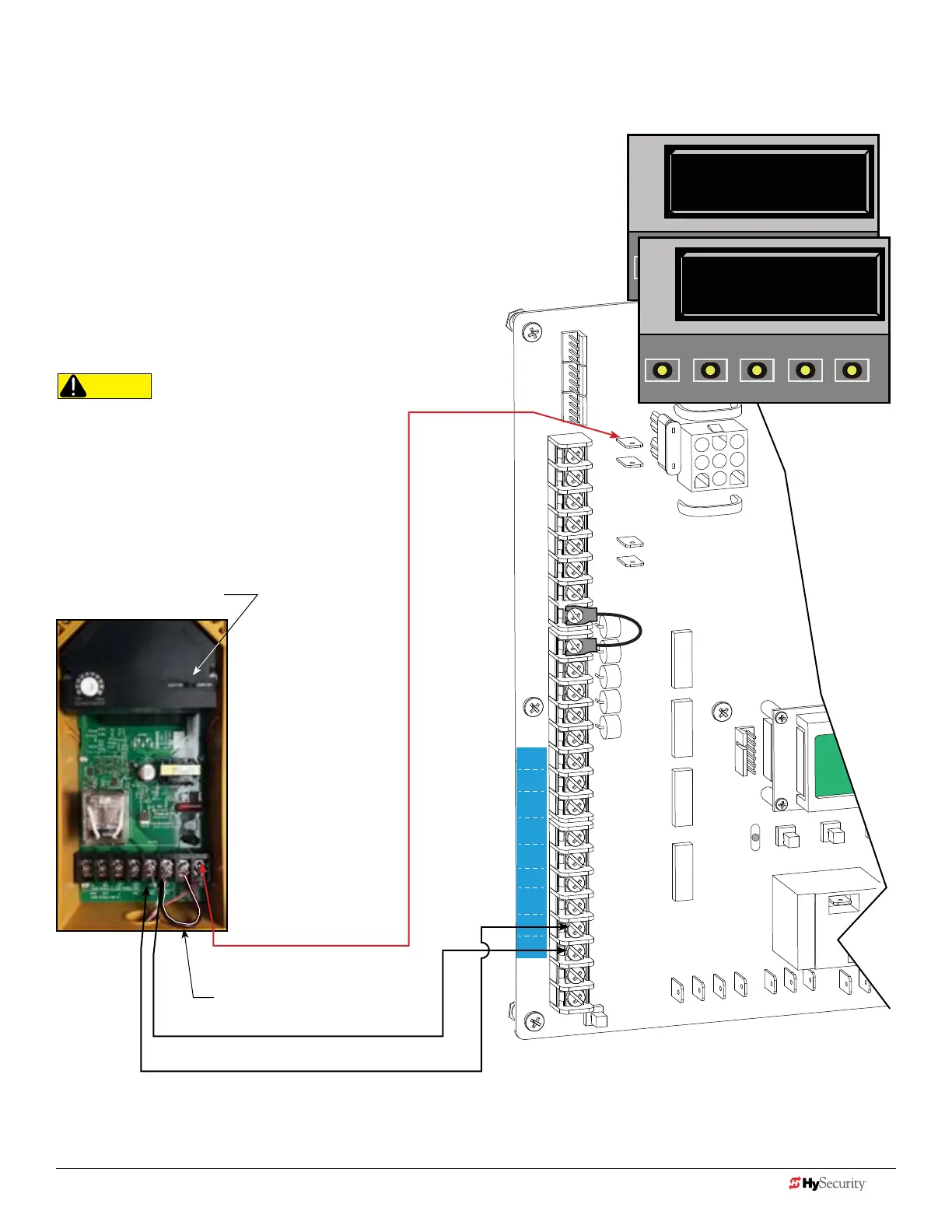

Omron (E3K R10K4)
Reflective Photo Eye
NOTE: Light/Dark switch
must be set to LIGHT ON.
+24V
Jumper -24V to Relay COM
(Terminal 6, C2)
Relay NO (Terminal 5, NO2) to SENSOR on Smart DC
COMMON / NEG. to SENSOR COM
NOTE: If you receive an Alert, "!ACTION BLOCKED"
"Photo Eye Open" PEO or "Photo Eye Close" PEC, take
steps to align the photo eye. Refer to Photo Eye
Alignment on page 12.
CAUTION
All external entrapment protection sensors must be
NC sensor outputs and wired to the SENSOR COM
terminal for monitoring and powering purposes. The
sensor becomes actively powered when the gate
operator receives a run command.
