HySecurity UL 325 - Smart Touch Wiring Introduction; Connecting and Programming Smart Touch Sensors

Wiring HySecurity Sensors: Smart Touch

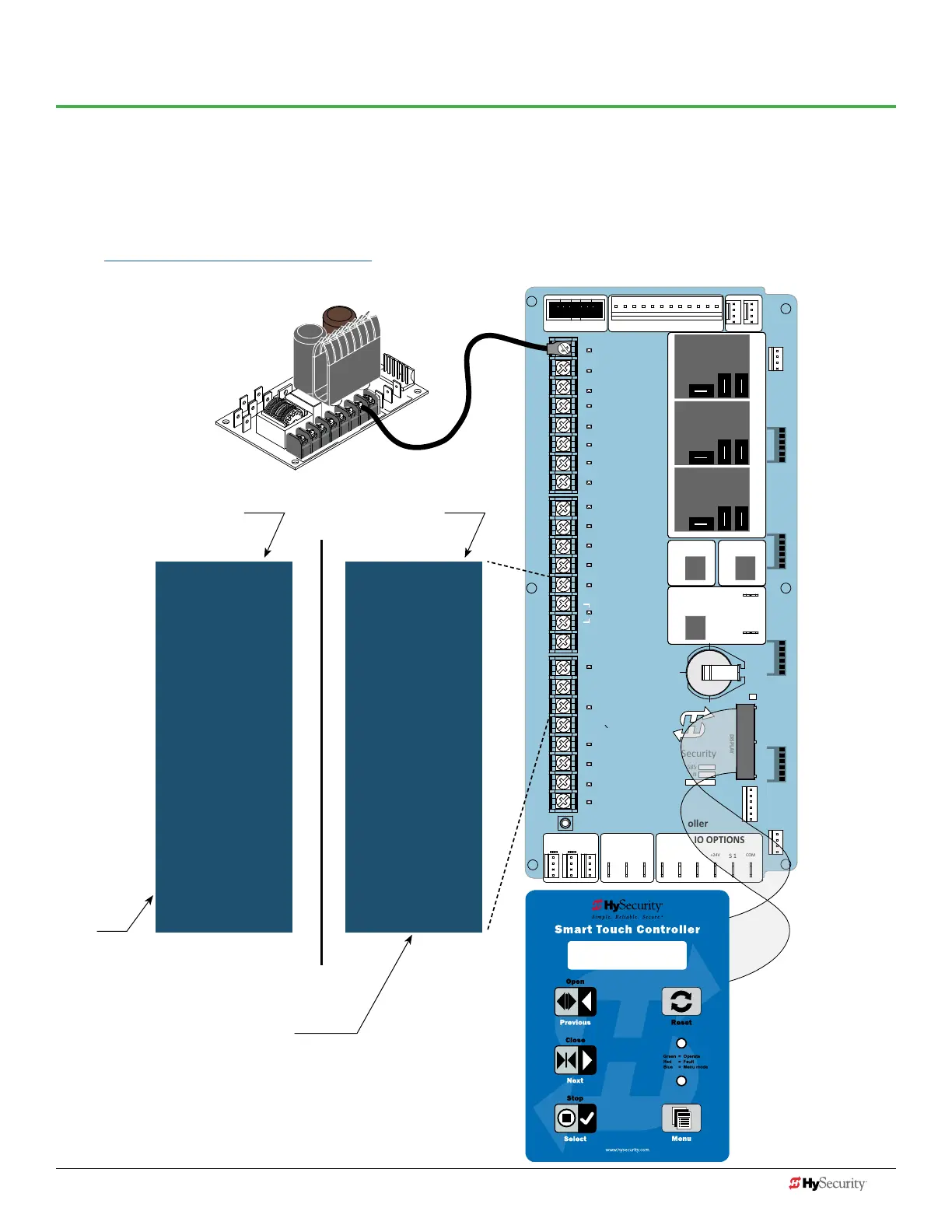

Wiring diagrams are provided on the following pages. The diagrams illustrate how to connect sensors and program the
gate operator. HySecurity Smart Touch gate operators can monitor entrapment protection sensors per UL 325 - 2015
Standard of Safety using software version h4.50 (or higher).
The site designer or installer must determine which external entrapment protection sensors will be installed with the
gate operator to create a UL 325 compliant installation site. For additional information, review For additional information,
review Gate Safety on the HySecurity website.
