IAI MSEL - 4.4.3 Simple Absolute Type

Chapter 4 Home-Return / Absolute Reset
83
4) A warning window shows up. Check the content and click “OK”.

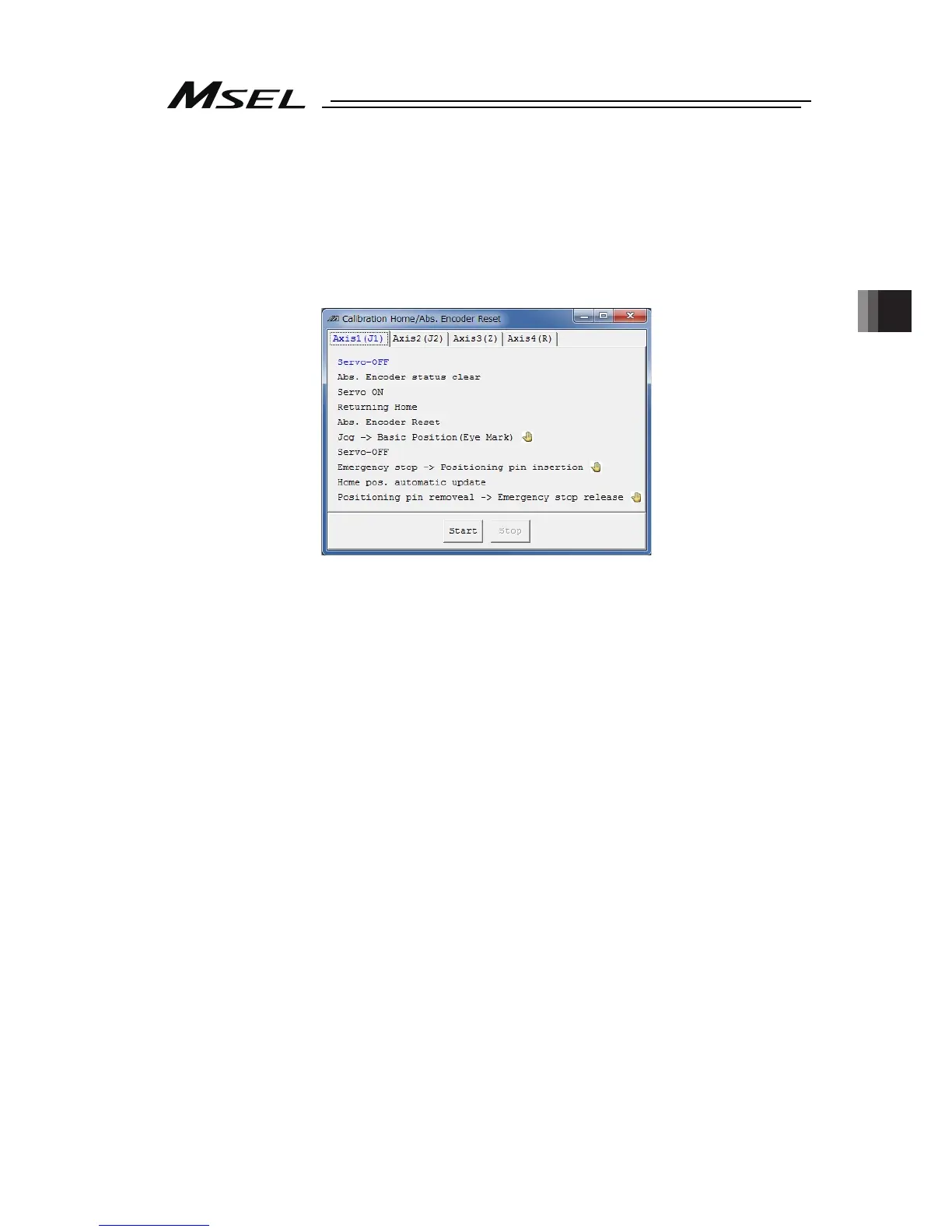

5) “Calibration Home/Abs. Encoder Reset” appears. Select the tab for the axis that requires
the absolute reset.
Select a tab for the axis to have home position adjustment from J1 (Axis 1) Axis or J2
(Axis 2) Axis.
Process for Z (Axis 3) Axis and R (Axis 4) Axis are to be conducted after J1 and J2.
