IAI MSEL User Manual

Chapter 1 Specications Check
32
[2] Fieldbus
Following fieldbus can be selected. For details, refer to each instruction manual provided
separately.
Type Overview Details
DeviceNet DeviceNet Field Network Board
This board communicates the I/O data as the
remote I/O terminal.
Refer to the separate.
(ME0124)
CC-Link CC-Link Field Network Board
This board communicates the I/O data as the
Ver1.10 remote device station.
Refer to the separate.
(ME0123)
PROFIBUS-DP PROFIBUS-DP Field Network Board
This board communicates the I/O data as the
slave station.
Refer to the separate.
(ME0153)
PROFINET-IO PROFINET-IO Field Network Board
This board communicates the I/O data as the
slave station.
Refer to the separate.
(ME0361)
EtherCAT EtherCAT Field Network Board
This board communicates the I/O data as the
slave station.
Refer to the separate.
(ME0309)
EtherNet/IP Network Connecting Communication
Board
I/O data communication also can be executed.
Refer to the separate.
(ME0308)
EtherNet/IP
Communication is established with Ethernet
Communication (teletype procedure
communication).
Refer to the separate.
(ME0140)

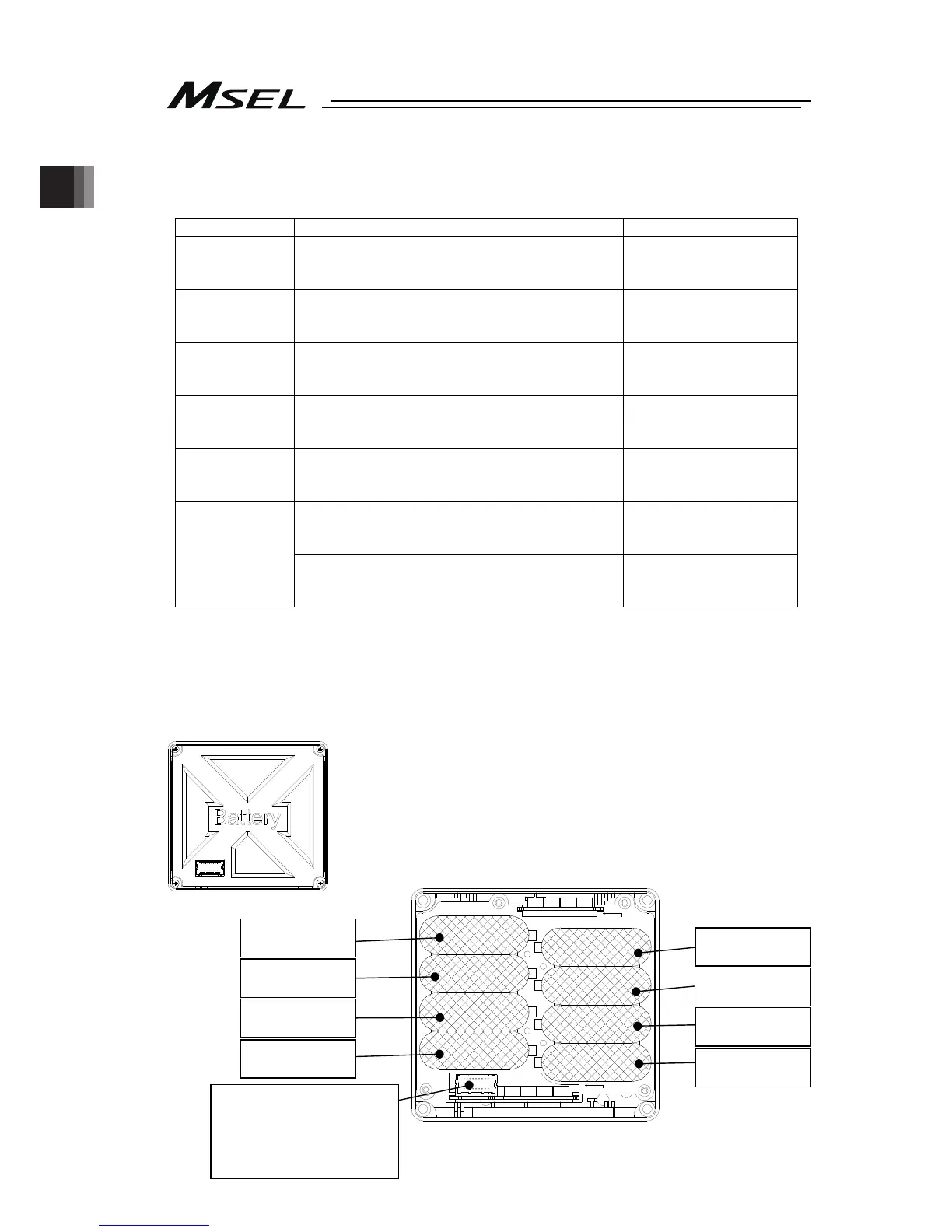

1.5 Absolute Battery Box (to be Connected for Simple Absolute Type)
The dedicated absolute battery box is to be used for simple absolute type.
The battery is to be mounted only to the absolute type axes in the places for 1st to 4th axes in
the figure below.
Connection to MSEL controller is to be conducted with a dedicated cable (CB-MSEL-AB005).
(Note) Cable length 0.5m
Front View with Cover on
AX3
AX7
AX1
AX4AX5AX6AX7
AX3 AX2 AX1 AX0
AX4
AX6
AX0
AX2
AX5
Not to use
Not to use
1
s
t
battery
(Axis No.0)
3
r
d
battery
(Axis No.2)
Connector for connection to
MSEL
(Note) Do not attempt to plug in
or take off the cable with
force in the tilted direction
to the connector.
Front View after Cover Removed
Not to use
Not to use
2
n
d
battery
(Axis No.1)
4
th
battery
(Axis No.3)
