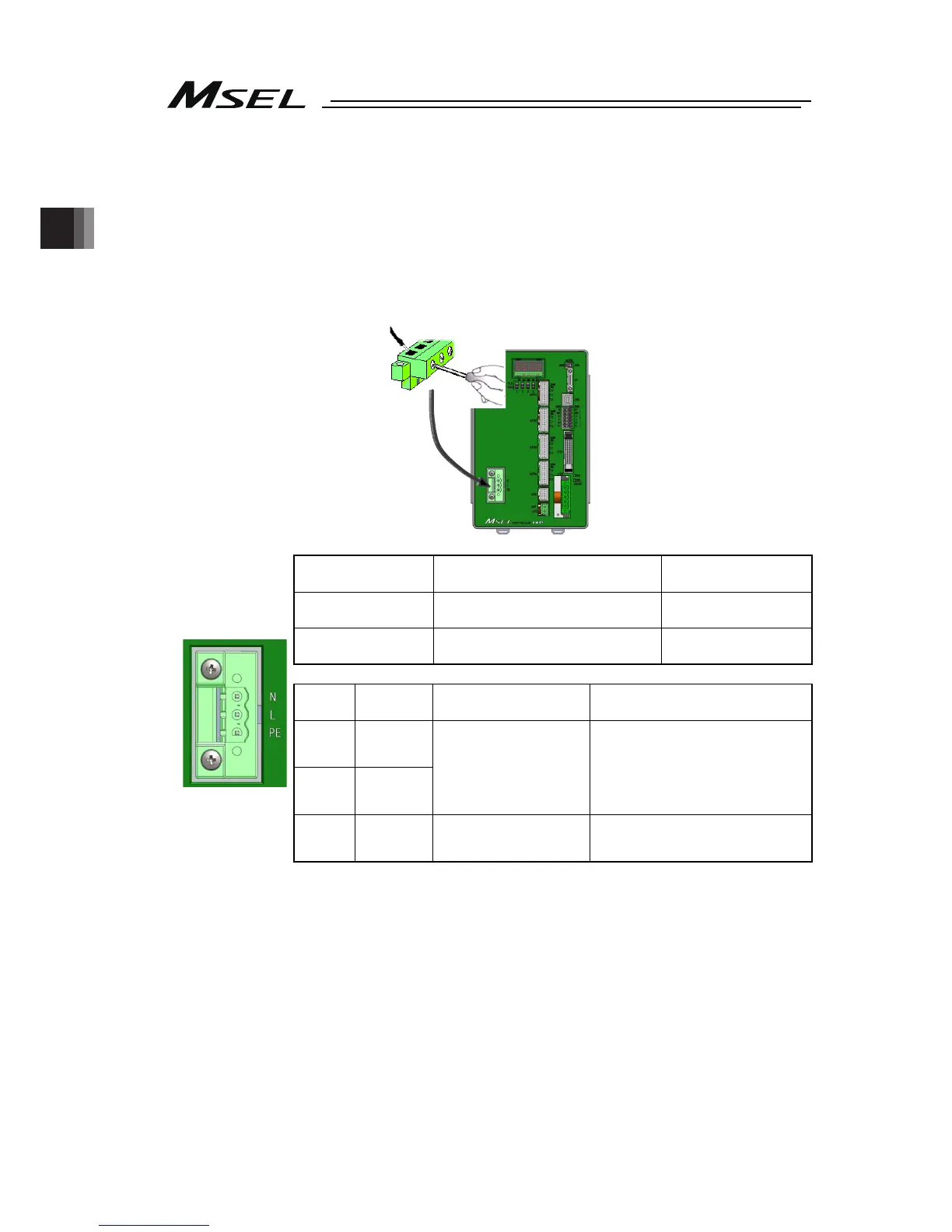

2.3 Wiring Method
2.3.1 Connection to AC Power Input Connector
The wire of the power supply is to be connected to the enclosed connector (plug).
Strip the sheath of the applicable wires for 7mm and insert them to the connector.
When inserting, turn the screw on the side of the inlet to the left with a slotted screwdriver to
open the inlet. After inserting the wires, turn the screw to the right with a slotted slotted
screwdriver to fix the wires.
Drive Power Supply
Input Connector
Model Remarks
Cable side MSTB2,5/3-STF-5,08 (SK: N-PE)
(PHOENIX CONTACT)
Enclosed in standard
package
Controller side DFK-MSTB2,5/3-GF-5,08
(PHOENIX CONTACT)
Pin No.
Signal
Name
Description Applicable Cable Diameter
3 N
2 L
Power supply input
(100 AC to 230V)
1.25 to 0.5mm
2
(AWG16 to 20)
Select the cable thickness
allowable for the current figured
out in the power capacity.
1 PE
Protective grounding
wire
3
2
1
Front view of
connector on
controller side
To Next Page
