17

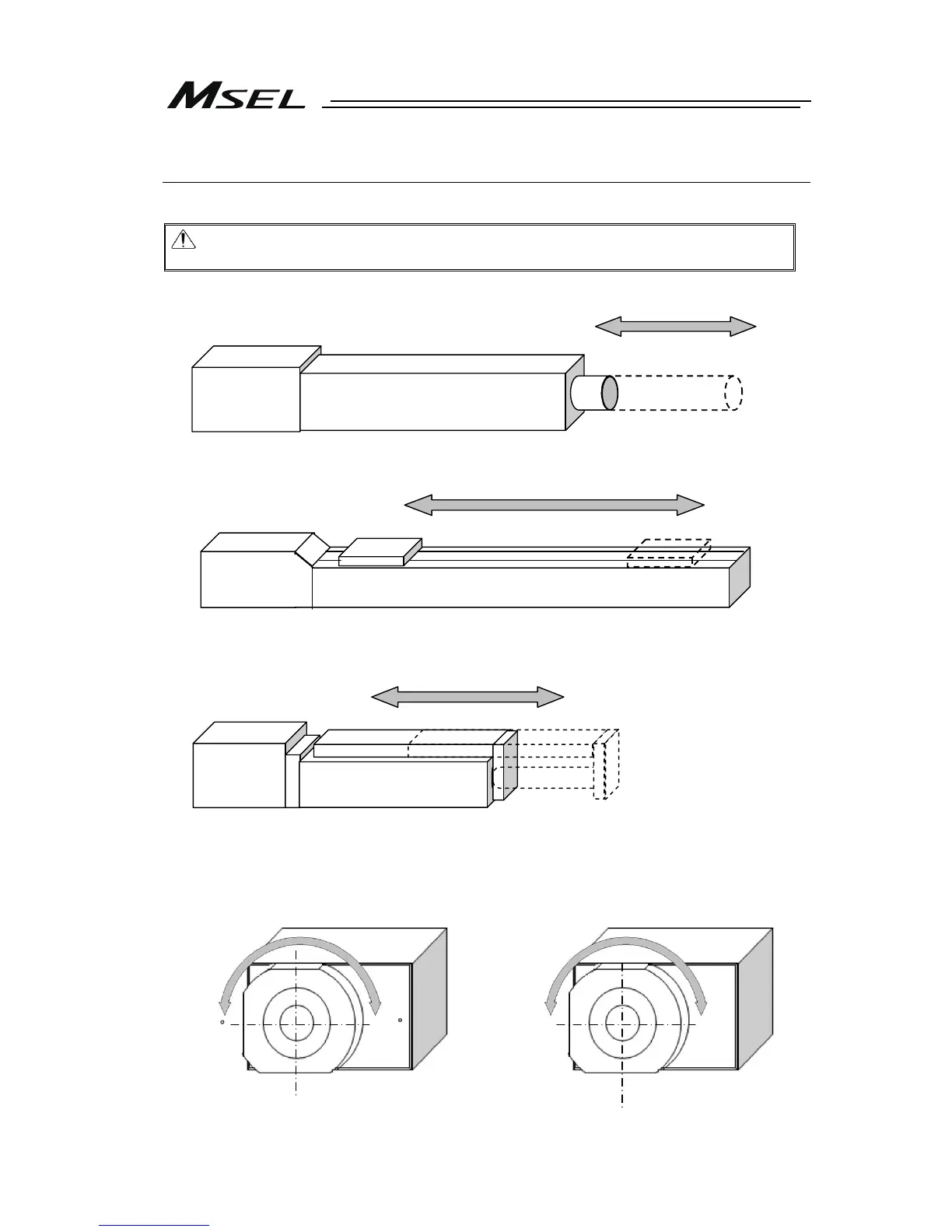

Actuator Axes
Refer to the pictures below for the actuator axes that can be controlled
0 defines the home position, and items in ( ) are for the home-reversed type (option).
(1) Rod Type
(2) Slider Type
(3) Table Type
(4) Rotary Type
(330° rotation specification) (Multi rotation specification)
For multiple rotation type with the origin reversed type, the directions of + and - are the other
way around.
Caution: There are some actuators that are not applicable to the origin reversed type.
Check further on the catalog or the Instruction Manual of the actuator.
-
+
0°
330°
+
(0)
0
(+)
0
(+)
+
(0)
+
(0)
0
(+)
