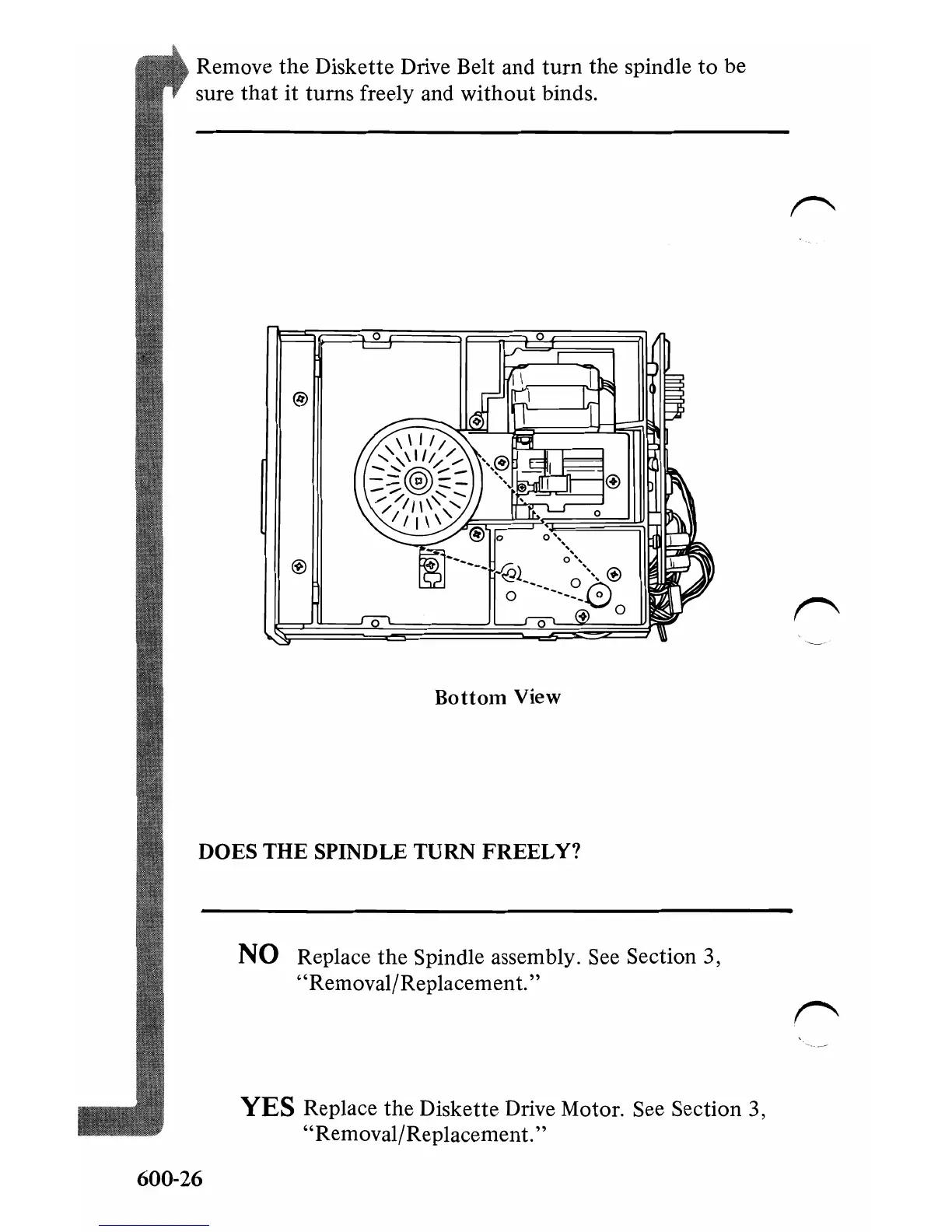

Remove the Diskette Drive Belt and
turn
the spindle
to
be
sure
that
it turns freely and without binds.
®
Bottom View
DOES THE SPINDLE TURN FREELY?
NO
Replace the Spindle assembly. See Section 3,
"Removal/Replacement. "
YES Replace the Diskette Drive Motor. See Section 3,
"Removal/Replacement. "
600-26
