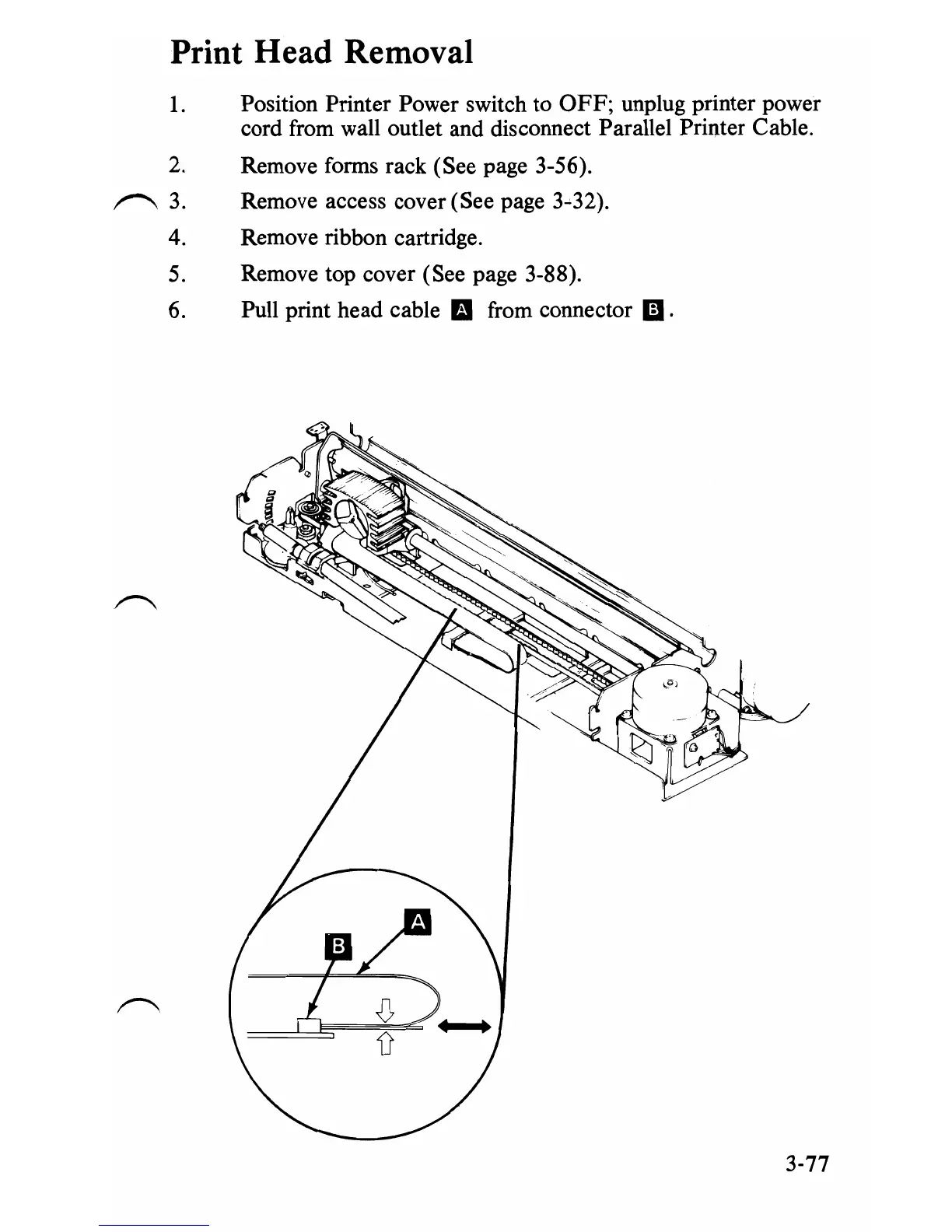

Print Head Removal
1.
2.
~3.
4.
5.
6.
Position Printer Power switch to
OFF;
unplug printer power
cord from wall outlet and disconnect Parallel Printer Cable.
Remove forms rack (See page 3-56).
Remove access cover (See page 3
..
32).
Remove ribbon cartridge.
Remove top cover (See page 3-88).
Pull print head cable
11
from connector iii.
3-77
