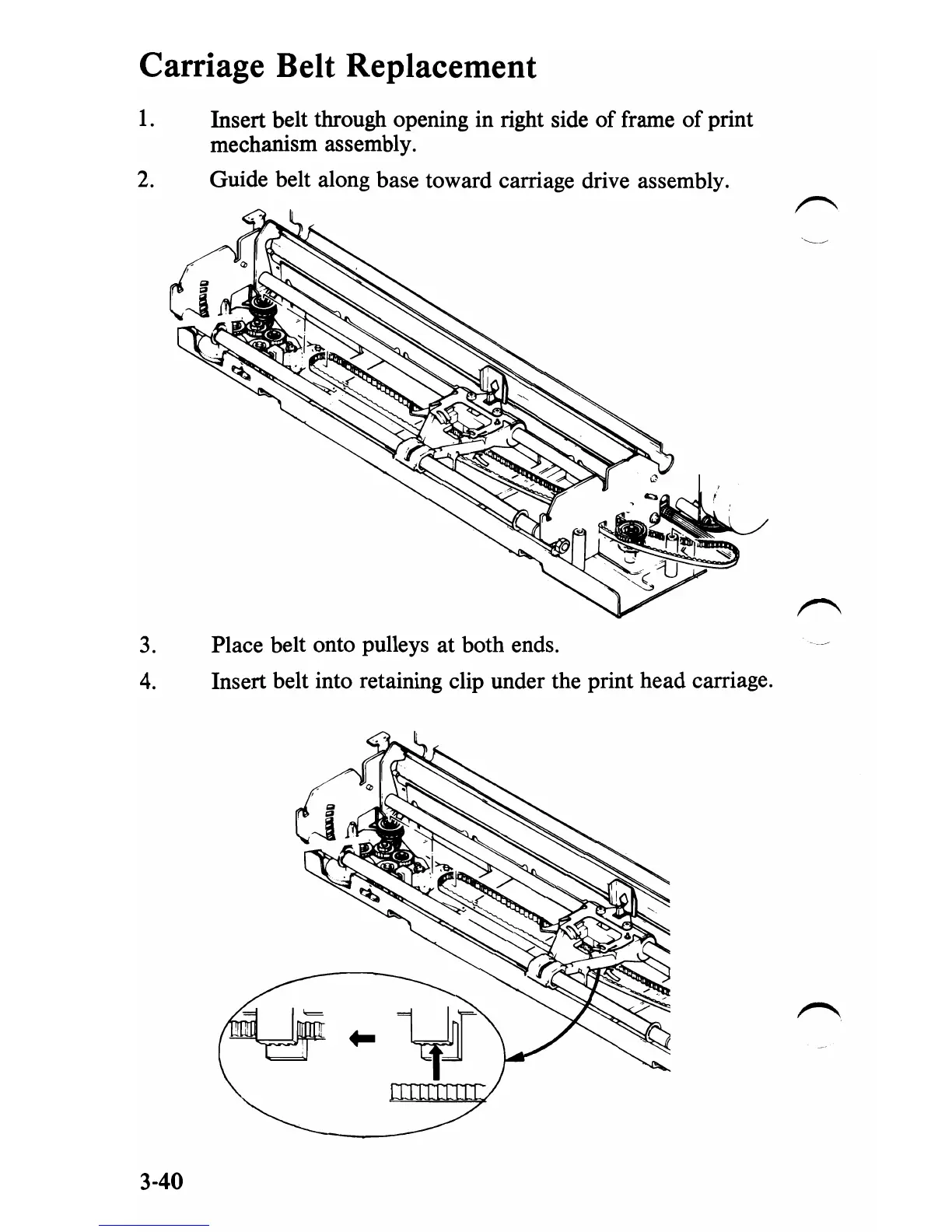

Carriage Belt Replacement
1.
Insert belt through opening in right side
of
frame
of
print
mechanism assembly.
2.
Guide belt along base toward carriage drive assembly.
3.
Place belt onto pulleys at both ends.
4. Insert belt into retaining clip under the print head carriage.
3-40
