IBM 5150 Hardware Maintenance Manual

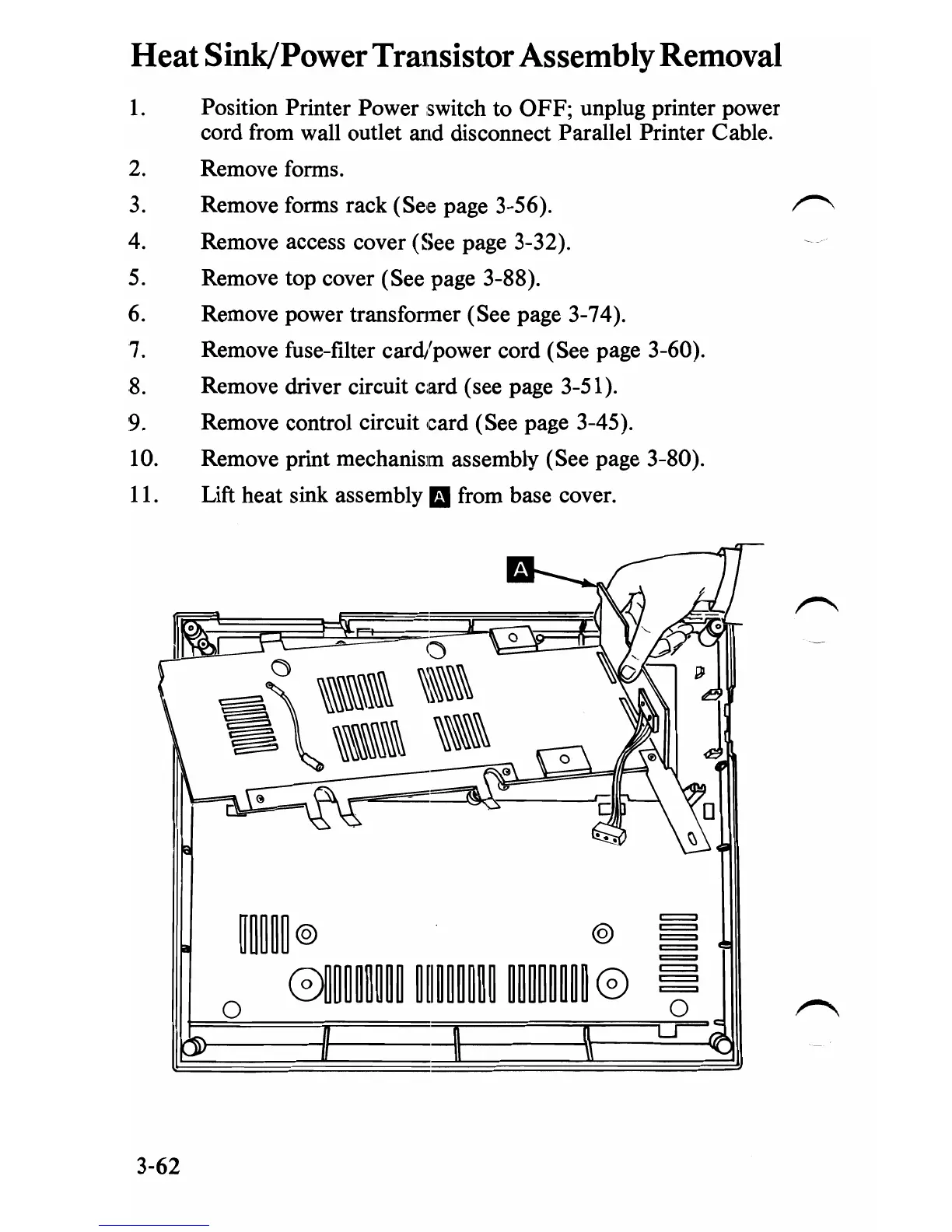

Heat Sink/Power Transistor Assembly Removal
1.
Position Printer Power switch to
OFF; unplug printer power
cord from wall outlet and disconnect Parallel Printer Cable.
2.
Remove forms.
3.
Remove forms rack
(Se<e page 3-56).
~
4.
Remove access cover (See page 3-32).
5.
Remove top cover (See page 3-88).
6.
Remove power transfonner (See page 3-74).
7.
Remove fuse-filter card/power cord (See page 3-60).
8.
Remove driver circuit card (see page 3-51).
9.
Remove control circuit card (See page 3-45).
10.
Remove print mechanism assembly (See page 3-80).
11.
Lift heat sink assembly
II from base cover.
[~~~~ @
@
~~~~~~~~ ~[I~~~~~~ ~~~~~~~~ e
o
=
=
=
==
==
=
=
=
3-62
