IBM 5150 Hardware Maintenance Manual

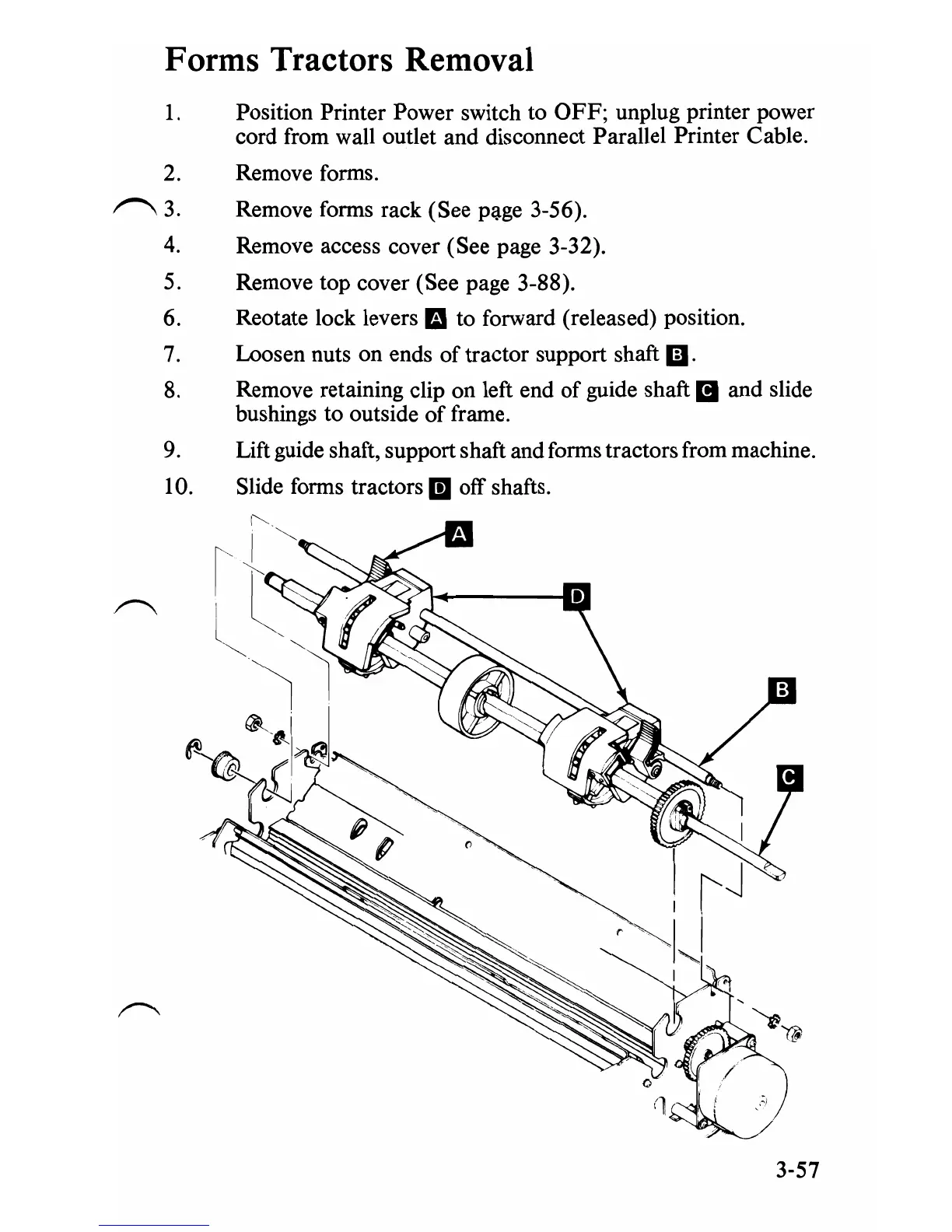

Forms Tractors Removal
1.
Position Printer Power switch to OFF; unplug printer power
cord from wall outlet and disconnect Parallel Printer Cable.
2.
Remove forms.
r".., 3.
Remove forms rack (See
p~ge 3-56).
4.
Remove access cover (See page 3-32).
5.
Remove top cover (See page 3-88).
6.
Reotate lock levers
E1 to forward (released) position.
7.
Loosen nuts on ends
of tractor support shaft Ill.
8.
Remove retaining clip on left end of guide shaft II and slide
bushings to outside
of frame.
9.
Lift guide shaft, support shaft and forms tractors from machine.
10.
Slide forms tractors
II off shafts.
3-57
