IBM 5150 Hardware Maintenance Manual

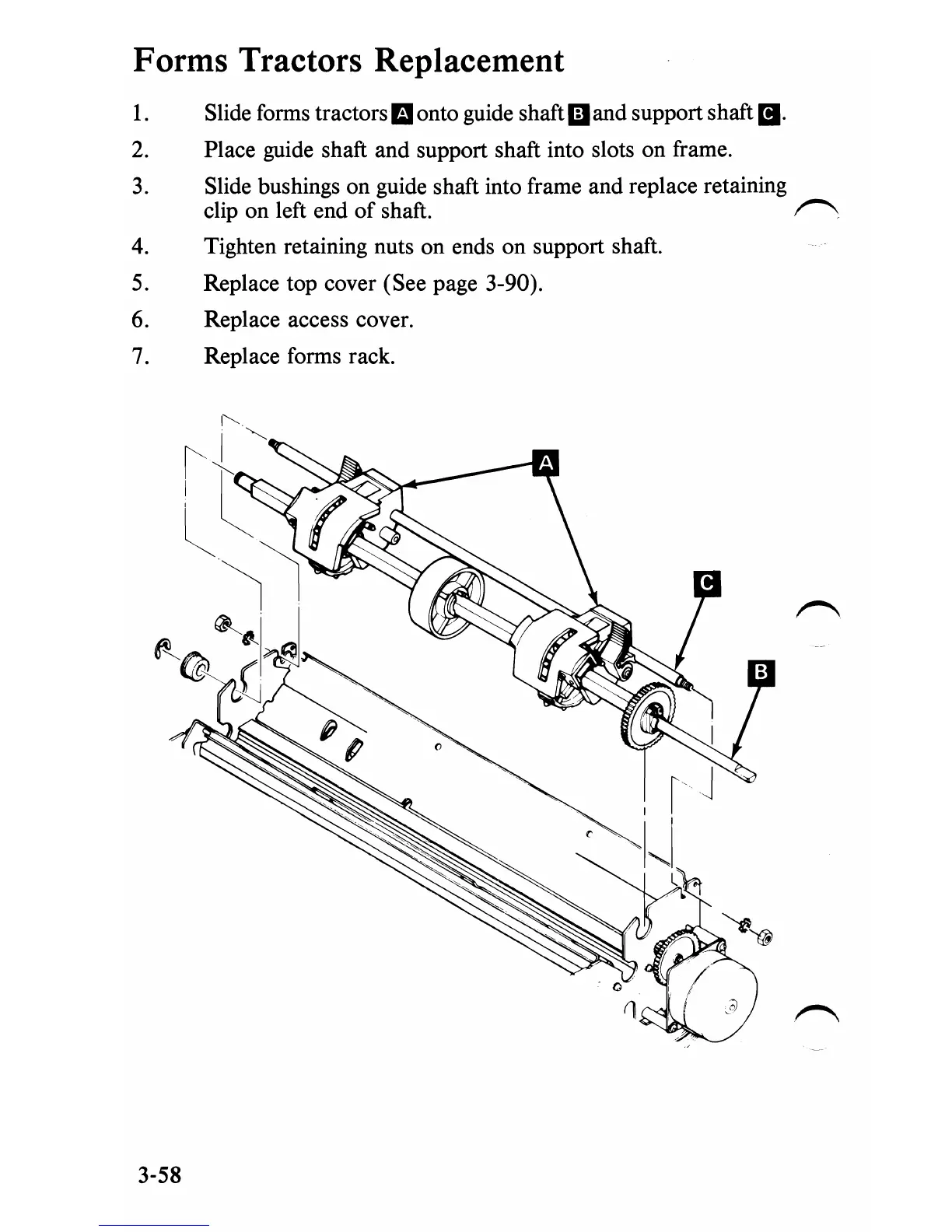

Forms Tractors Replacement
1. Slide forms tractors IIIonto guide shaft liJand support shaft II.
2. Place guide shaft and support shaft into slots on frame.
3. Slide bushings on guide shaft into frame and replace retaining
~oo~~~~ ~
4. Tighten retaining nuts on ends on support shaft.
5. Replace top cover (See page 3-90).
6. Replace access cover.
7. Replace forms rack.
3-58

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
