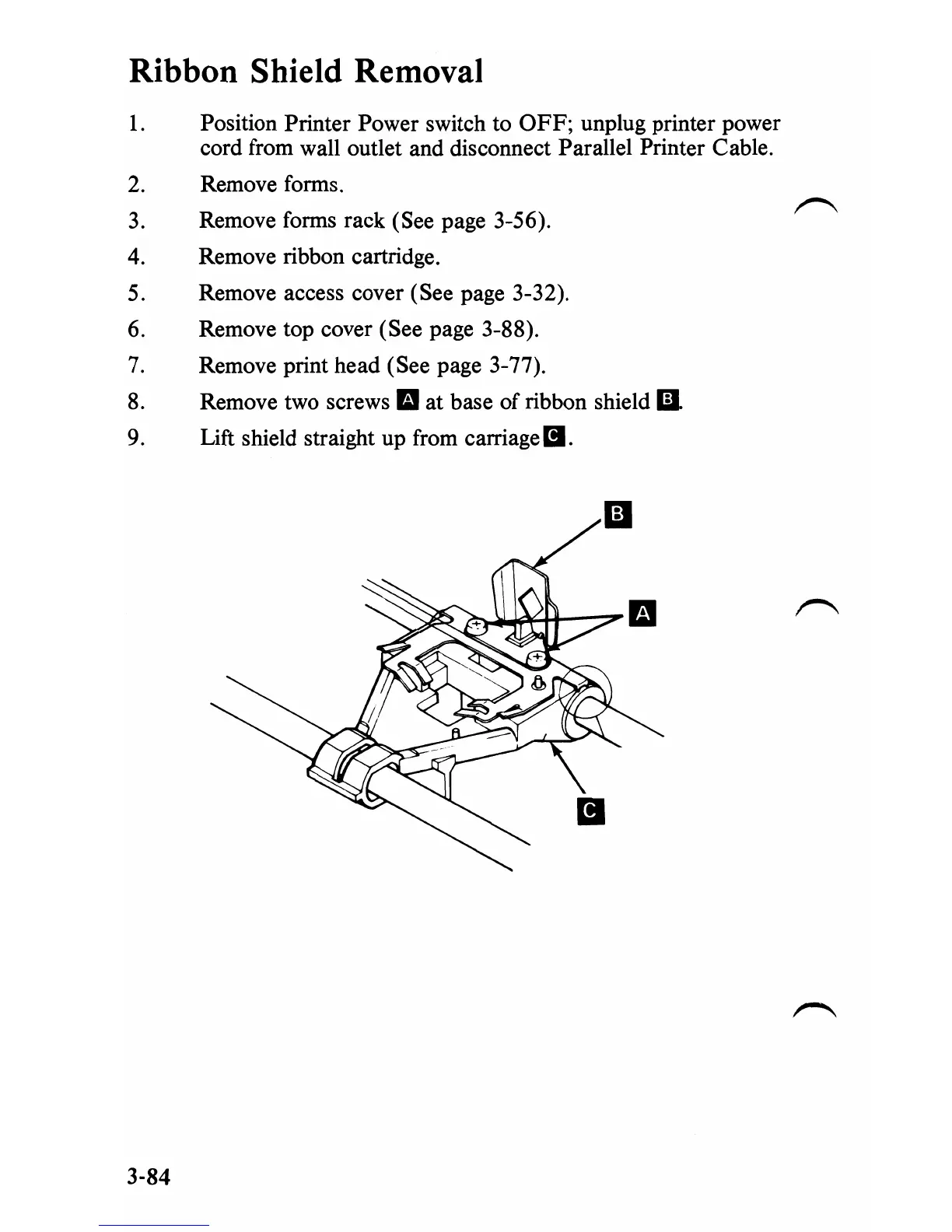

Ribbon Shield Removal
1.
Position Printer Power switch to
OFF;
unplug printer power
cord from wall outlet and disconnect Parallel Printer Cable.
2. Remove forms.
3.
Remove forms rack (See page 3-56).
4.
Remove ribbon cartridge.
5.
Remove access cover (See page 3-32).
6.
Remove top cover (See page 3-88).
7.
Remove print head (See page 3-77).
8. Remove two screws
E1
at base
of
ribbon shield
iii
9. Lift shield straight up from carriage
II.
3-84
