Carriage Belt Adjustment
1.
Position Printer Power switch to
OFF;
unplug printer power
cord from wall outlet and disconnect Parallel Printer Cable.
2.
Remove forms.
,.-......
3.
Remove forms rack (See page 3-56).
4. Remove access cover (See page 3-32).
5.
Remove ribbon cartridge.
6.
Remove top cover (See page 3-88).

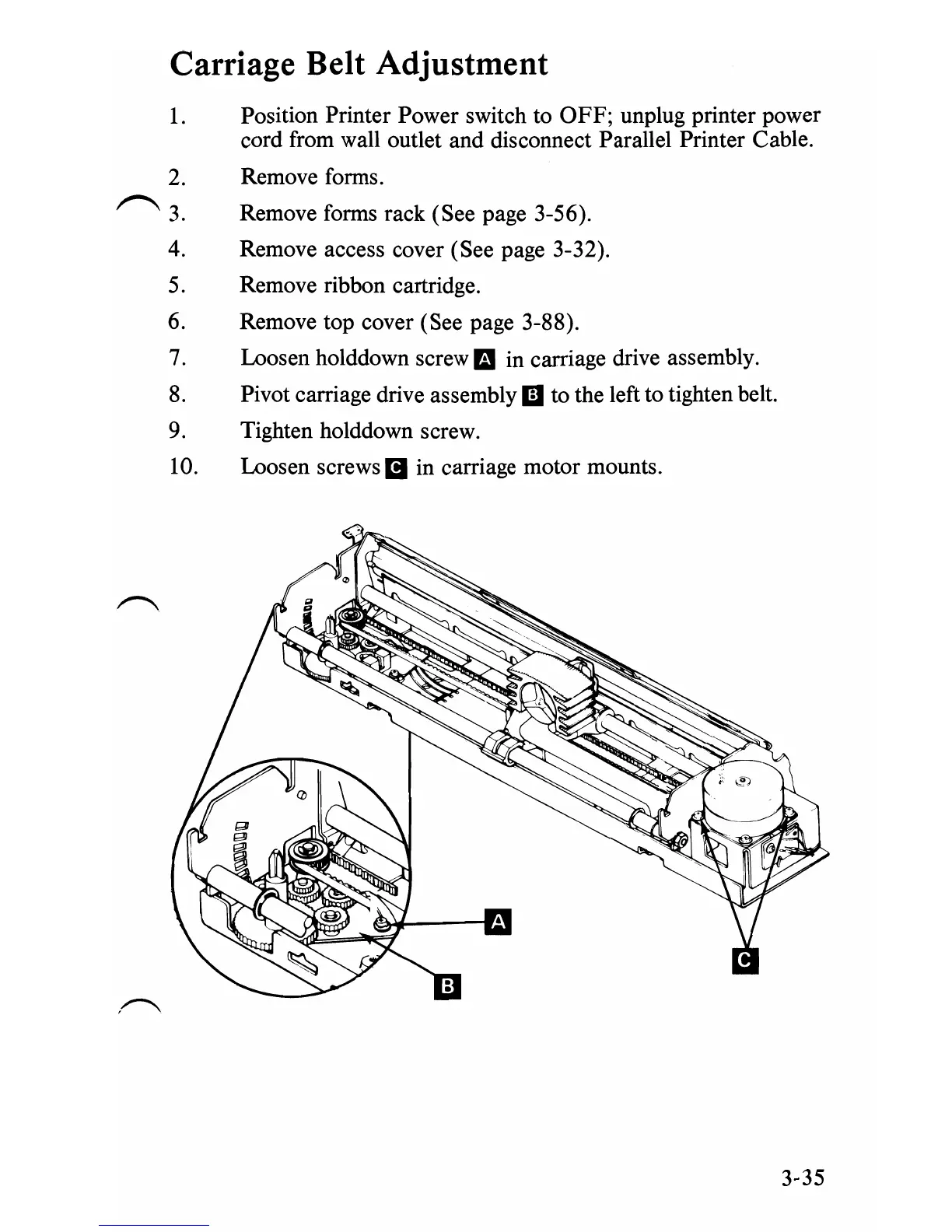

7.
Loosen holddown screw
min carriage drive assembly.
8.
Pivot carriage drive assembly
Ii
to the left to tighten belt.
9.
Tighten holddown screw.
10.
Loosen screws
iii
in carriage motor mounts.
