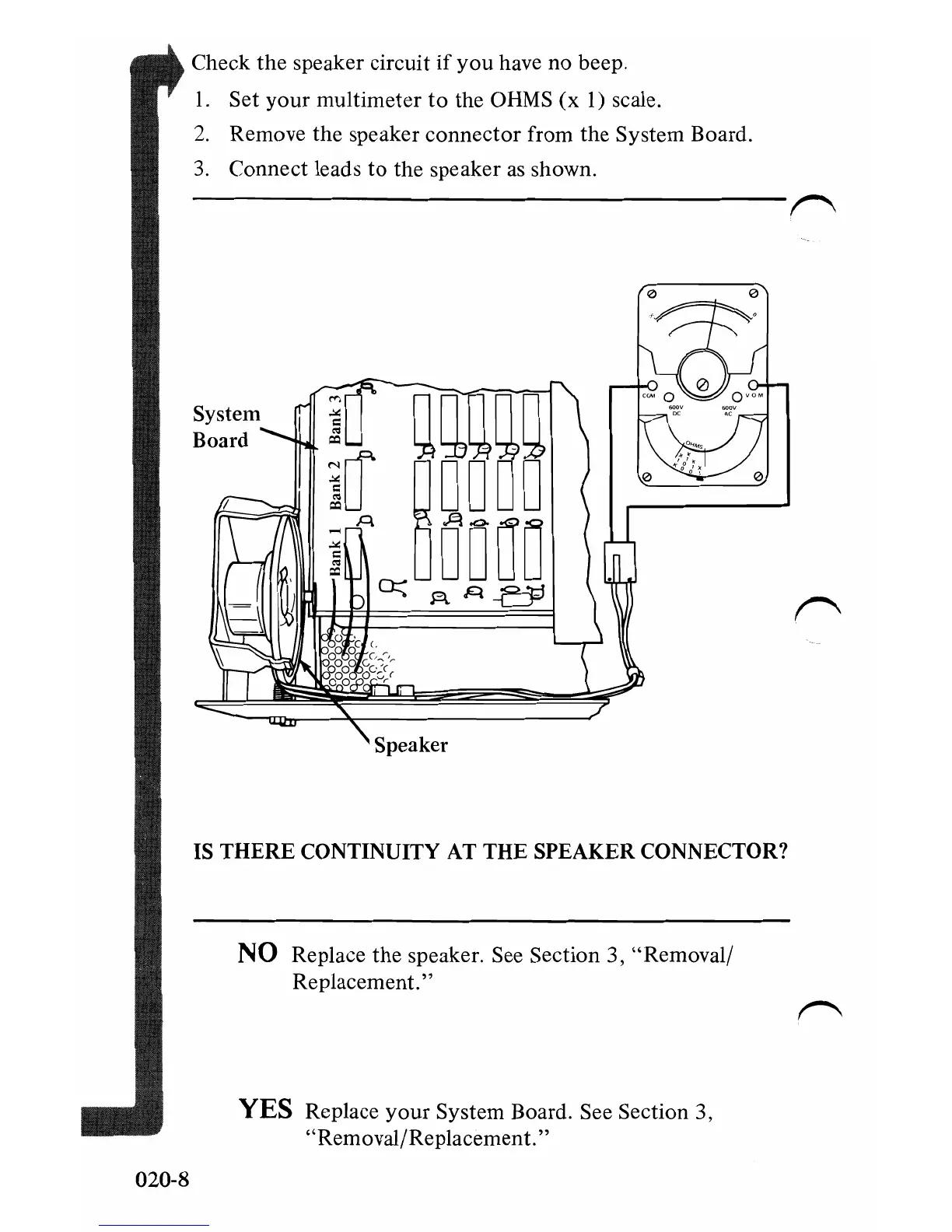

Check
the
speaker circuit
if
you
have
no
beep.
1.
Set
your
multimeter
to
the OHMS
(x
1)
scale.
2.
Remove the speaker connector from the System Board.
3.
Connect leads
to
the speaker
as
shown.
-----------------f',.
System
Board
IS THERE CONTINUITY AT THE SPEAKER CONNECTOR?
NO
Replace
the
speaker. See Section 3, "Removal/
Replacement. "
YES Replace
your
System Board. See Section 3,
"Removal/Replacement. "
020-8
