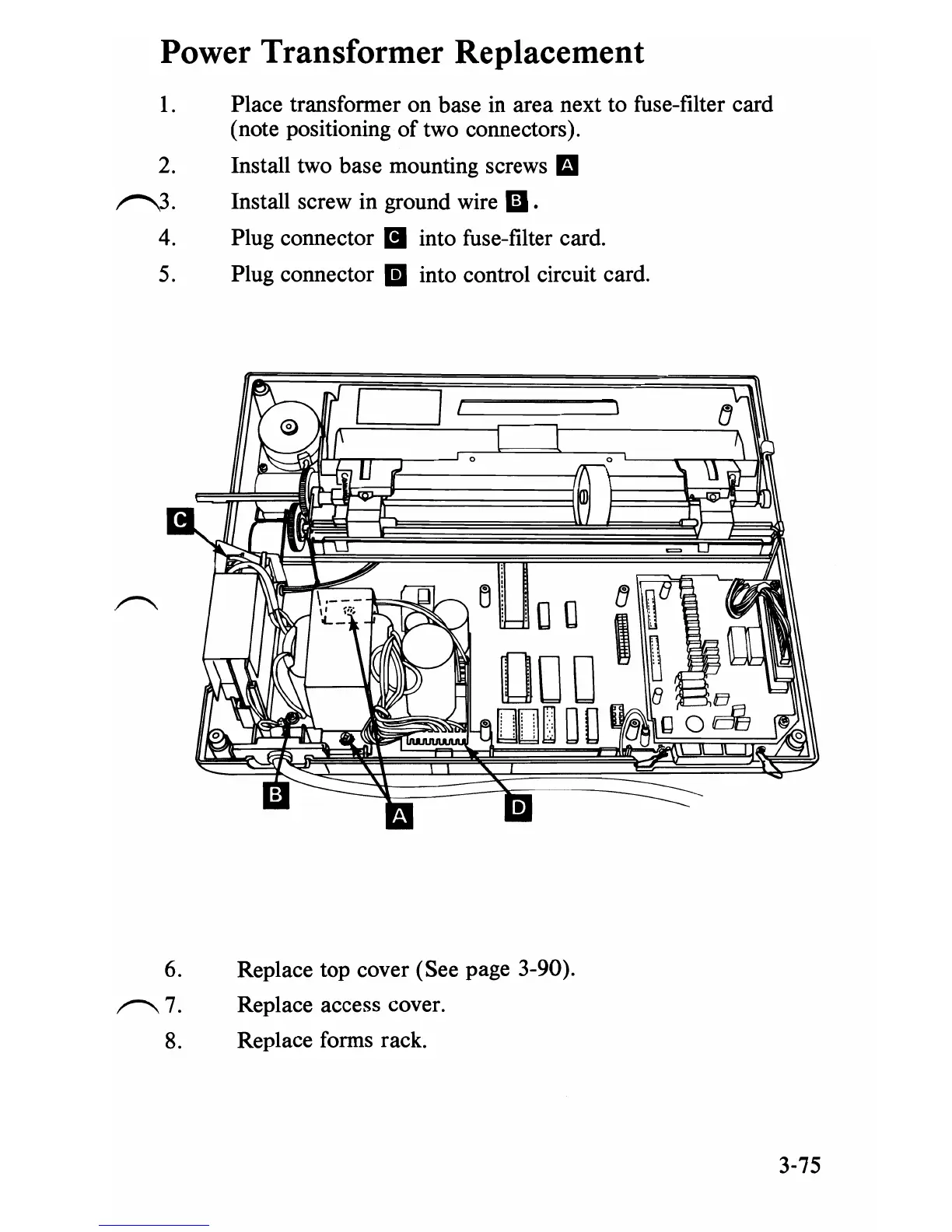

Power Transformer Replacement
1.
Place transformer on base in area next to fuse-filter card
(note positioning
of two connectors).
2.
Install two base mounting screws
II
r'\3.
Install screw in ground wire iii .
4. Plug connector II into fuse-filter card.
5.
Plug connector
II into control circuit card.
6. Replace top cover (See page 3-90).
r---.... 7.
Replace access cover.
8.
Replace forms rack.
3-75
