IBM 5150 Hardware Maintenance Manual

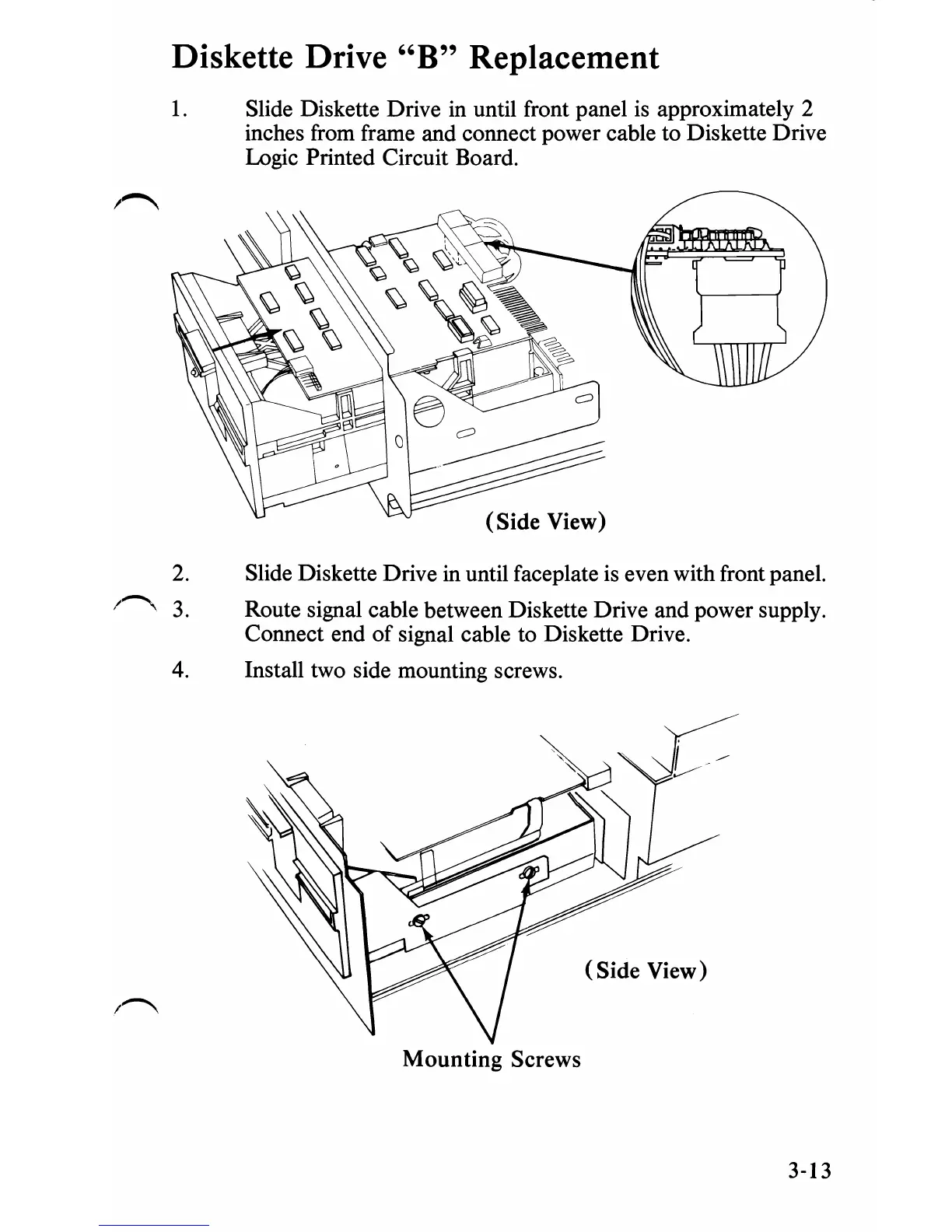

Diskette Drive "B" Replacement
1. Slide Diskette Drive in until front panel is approximately 2
inches from frame and connect power cable to Diskette Drive
Logic Printed Circuit Board.
(Side View)
2. Slide Diskette Drive in until faceplate is even with front panel.
/...-....., 3.
Route signal cable between Diskette Drive and power supply.
Connect end
of signal cable to Diskette Drive.
4.
Install two side mounting screws.
(Side View)
I~
Mounting Screws
3-13
