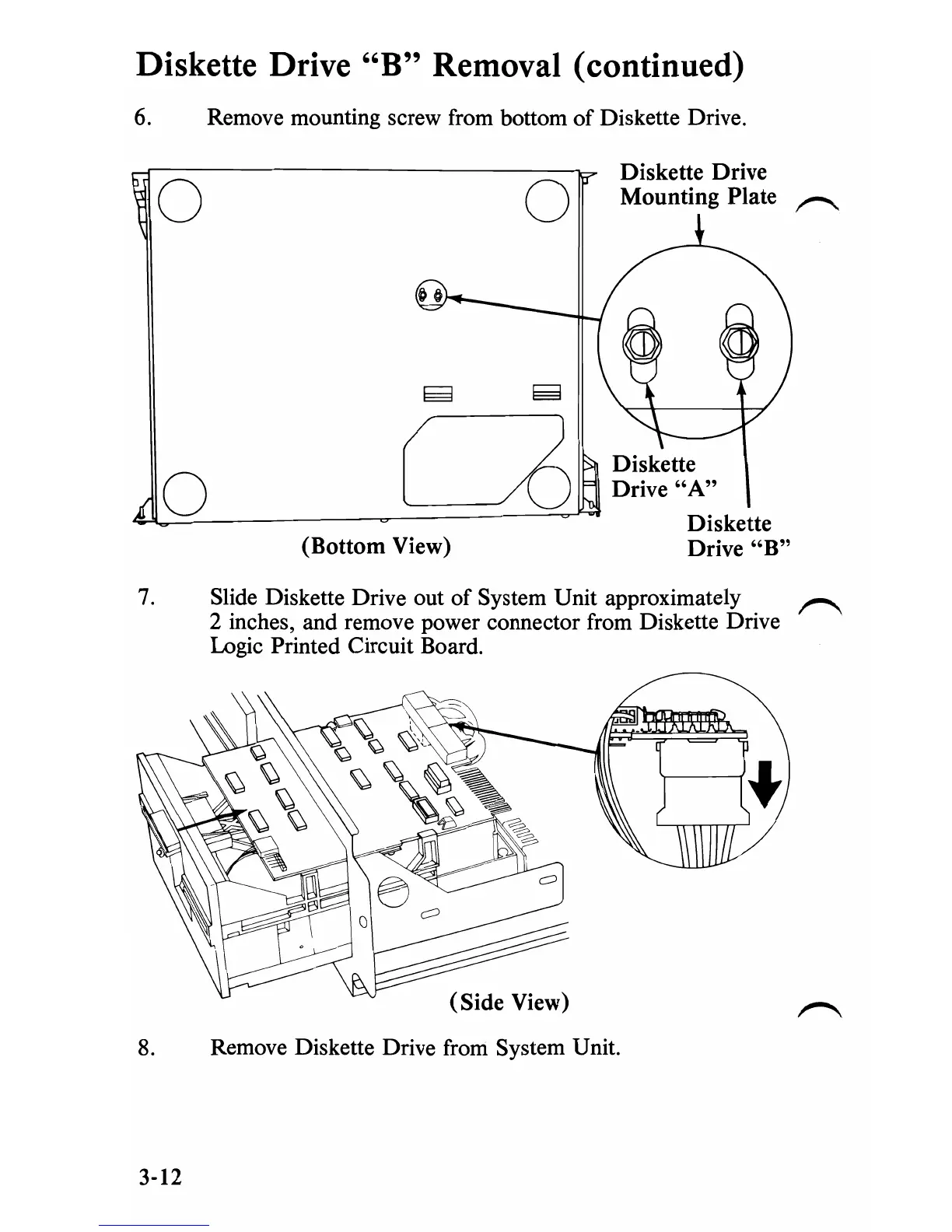

Diskette Drive "B" Removal (continued)
6.
Remove mounting screw from bottom
of
Diskette Drive.
Diskette Drive
Mounting Plate
r",
o o
o
Diskette
Drive
"A"
Diskette
(Bottom
View)
Drive
"B"
7.
Slide Diskette Drive out
of
System Unit approximately r-...
2 inches, and remove power connector from Diskette Drive
Logic Printed Circuit Board.
(Side
View)
8.
Remove Diskette Drive from System Unit.
3-12
