Power Supply Replacement
1.
Position the power supply about
1/2
inch from the rear
of
the
System Unit back plate and slide into position.
2. Align the screw holes.
3.
Replace and tighten tour power supply mounting screws.
4.
If
your System Unit contains a Diskette Drive, reconnect
the Diskette Drive power and signal connectors.
5. Reinstall the System Board power connectors.

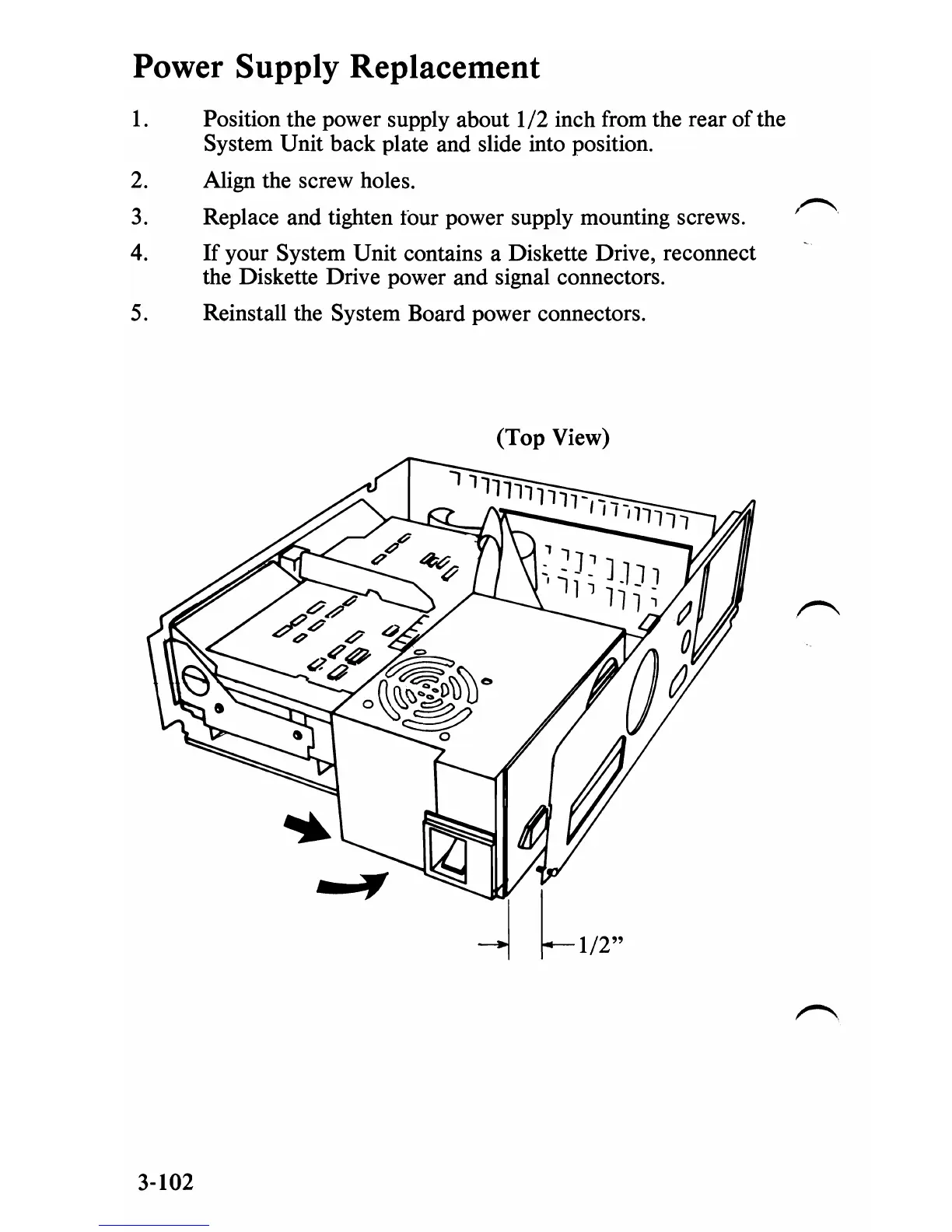

(Top View)
