IBM 5150 Hardware Maintenance Manual

---
--------
IBM Monochrome Display

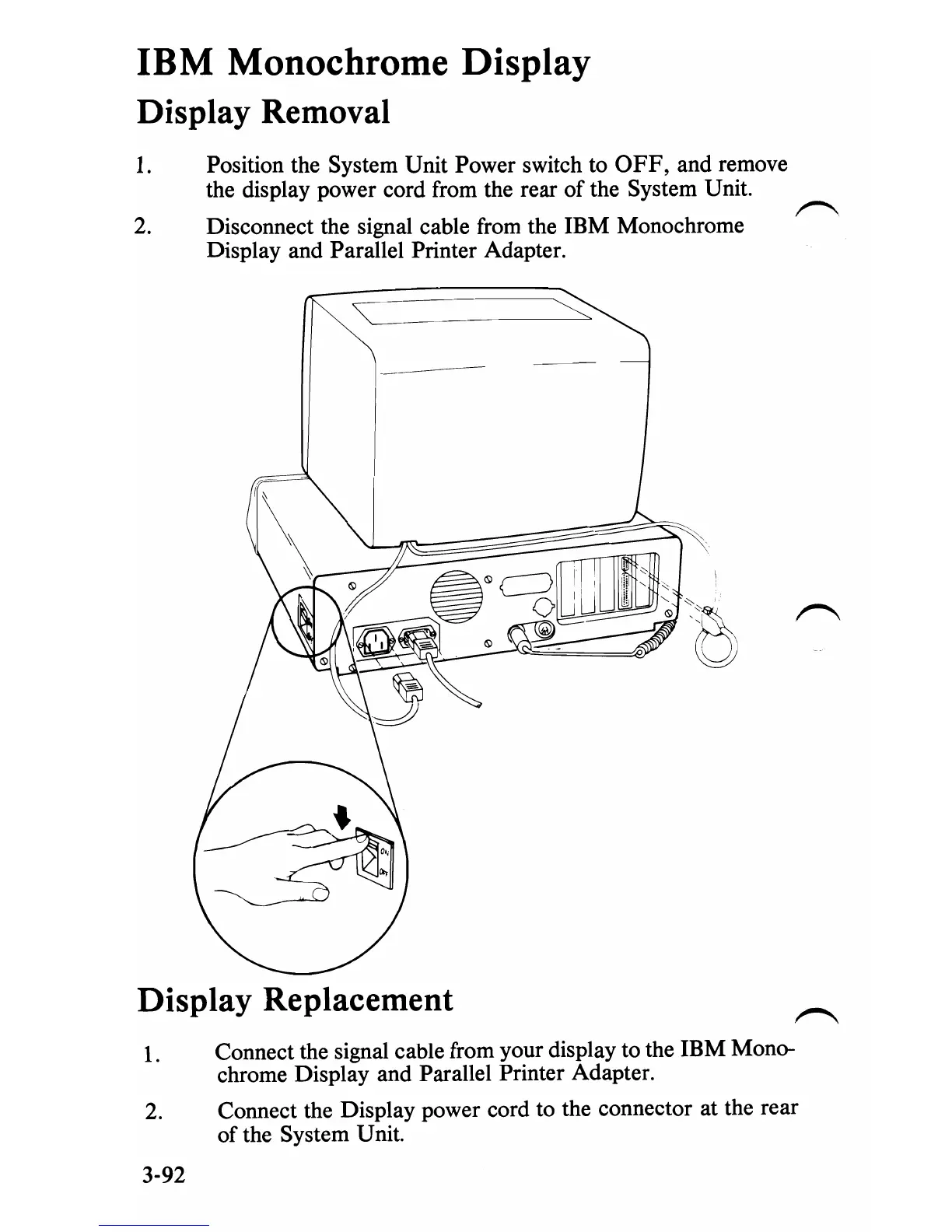

Display Removal
1. Position the System Unit Power switch to OFF, and remove
the display power cord from the rear
of the System Unit.
2.
Disconnect the signal cable from the IBM Monochrome
Display and Parallel Printer Adapter.
"""~ ~-=----- -------"-"-
\
I
Display Replacement
1. Connect the signal cable from your display to the IBM Mono-
chrome Display and Parallel Printer Adapter.
2. Connect the Display power cord to the connector at the rear
of the System Unit.
3-92

IBM 5150 Specifications

General

Processor	Intel 8088
Clock Speed	4.77 MHz
RAM	16 KB - 256 KB
Manufacturer	IBM
Model	5150
Release Year	1981
Storage	5.25-inch floppy drives
Graphics	MDA or CGA
Operating System	IBM PC DOS
Ports	Cassette, keyboard
Expansion Slots	5
