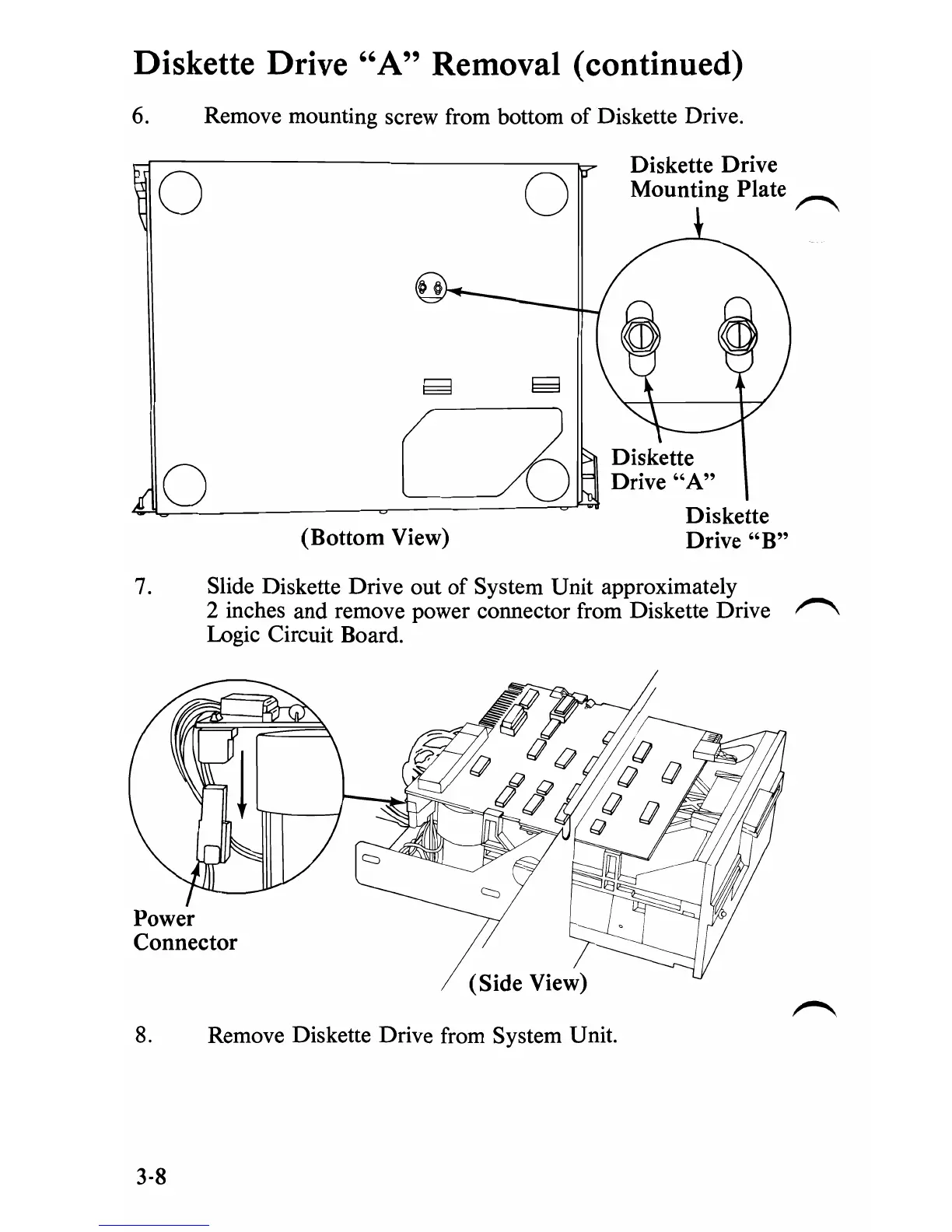

Diskette Drive "A" Removal (continued)
6. Remove mounting screw from bottom of Diskette Drive.
Diskette Drive
Mounting
Plate I"'"'...
o
o
o
Diskette
(Bottom View)
Drive
"B"
7. Slide Diskette Drive out of System Unit approximately
2 inches and remove power connector from Diskette Drive
I"'"'...
Logic Circuit Board.
(Side View)
8. Remove Diskette Drive from System Unit.
3-8
