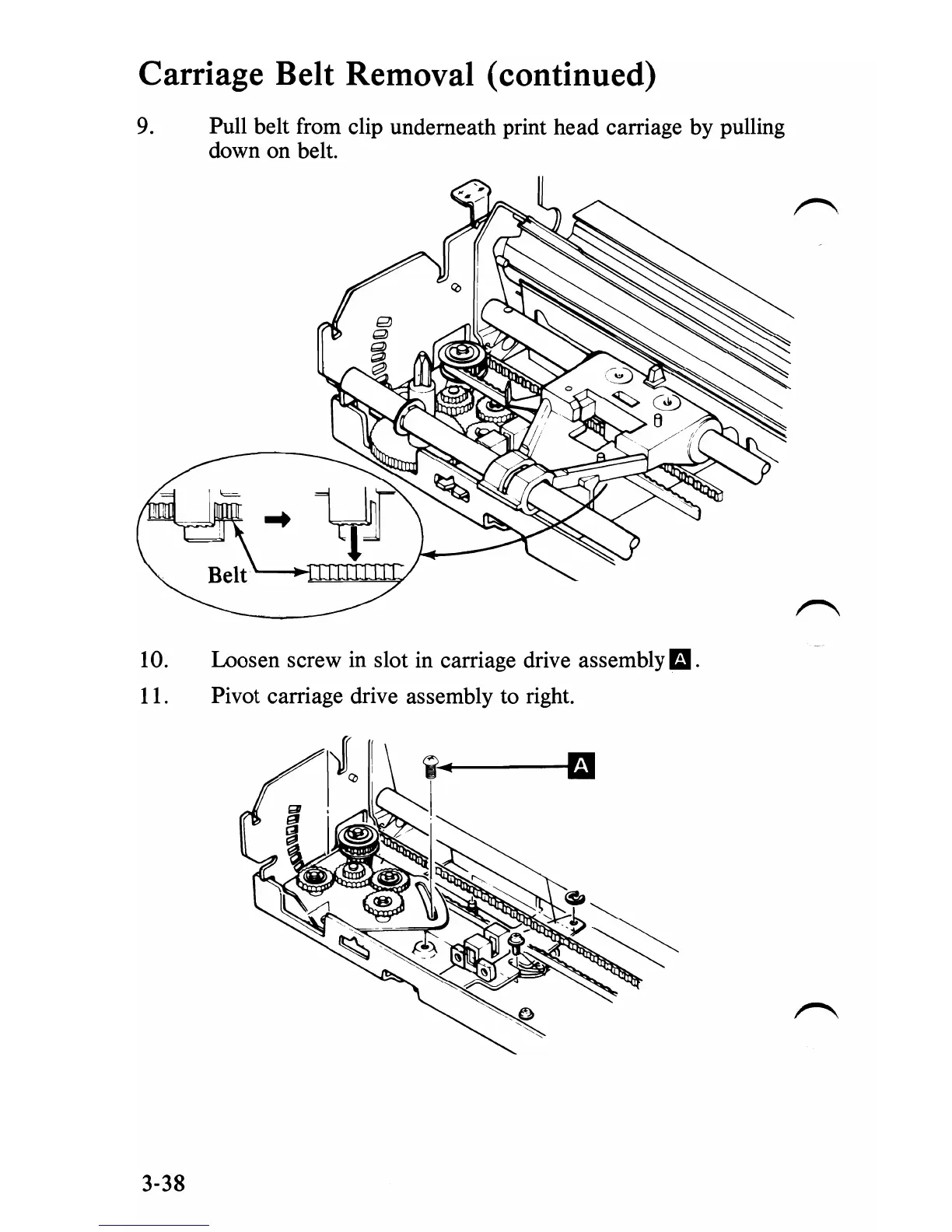

Carriage Belt Removal (continued)

Pull

belt from clip underneath print head carriage by pulling

down on belt.

10. Loosen screw in slot in carriage drive assembly

lEt.

11. Pivot carriage drive assembly to right.

3-38
