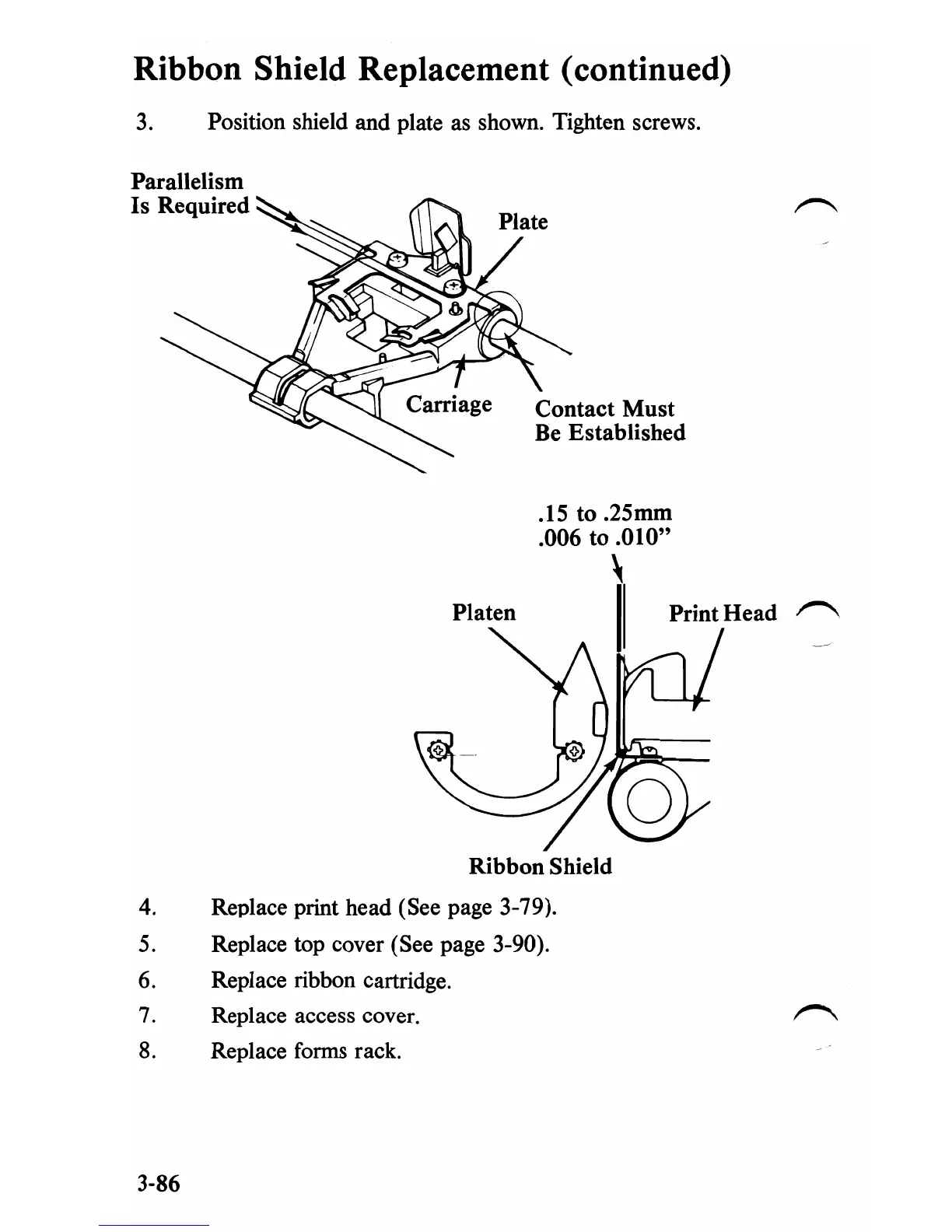

Ribbon Shield Replacement (continued)
3. Position shield and plate as shown. Tighten screws.
Parallelism
Is Required
Contact Must
Be Established
Platen Print Head
,,-.....,
Ribbon Shield
4. Replace print head (See page 3-79).
5. Replace top cover (See page 3-90).
6. Replace ribbon cartridge.
7. Replace access cover.
8.
Replace
forms rack.
3-86
