System Board Replacement (continued)
2. Slide System Board toward power supply until hole for
mounting screw
is aligned.
3. Install System Board mounting screw mi·
4. Install speaker connector m.
5. Install Option Adapters (See page 3-97).
6. Install Diskette Drive signal cable II and System Board
power connector
II .
7. Install System Unit cover (See page 3-98).

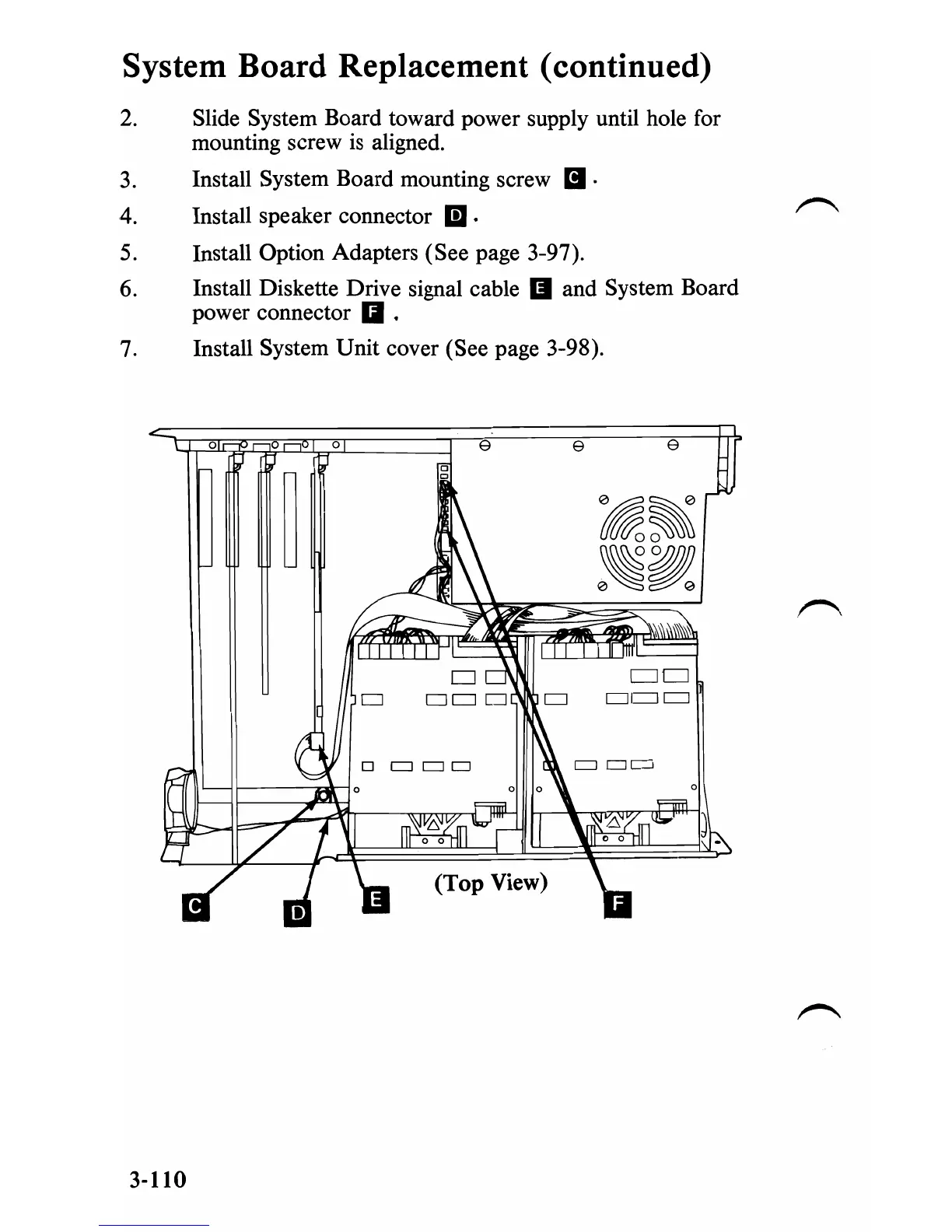

o o
