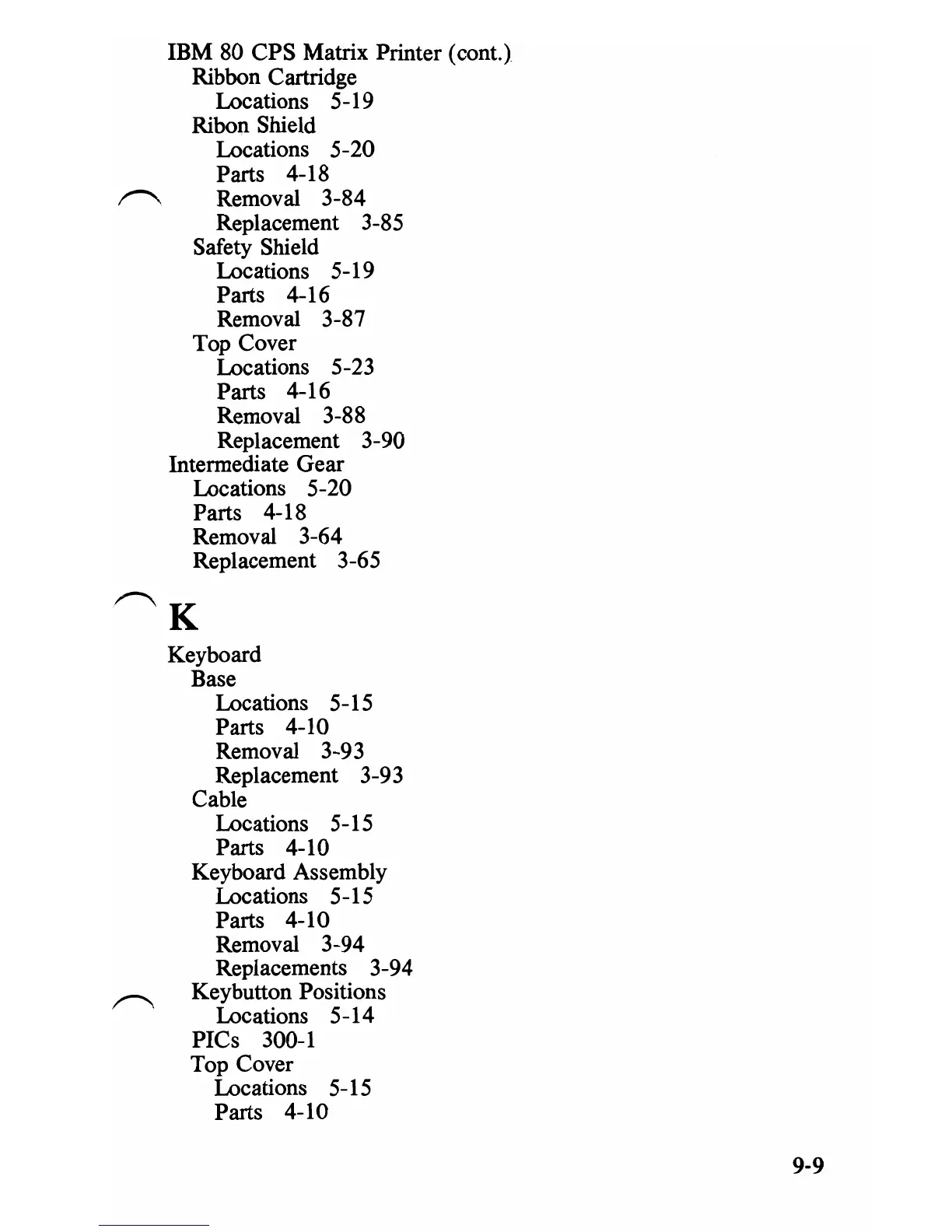

IBM 5150 - Page 344

IBM 80 CPS Matrix Printer (cont.)
Ribbon Cartridge
Locations 5-19
Ribon Shield
Locations 5 -20
Parts 4-18
",-....., Removal 3-84
Replacement 3-85
Safety Shield
Locations 5-19
Parts 4-16
Removal 3-87
Top Cover
Locations 5-23
Parts 4-16
Removal 3-88
Replacement 3-90
Intermediate Gear
Locations 5-20
Parts 4-18
Removal 3-64
Replacement 3-65
~K
Keyboard
Base
Locations 5-15
Parts 4-10
Removal 3-93
Replacement 3-93
Cable
Locations 5-15
Parts 4-10
Keyboard Assembly
Locations 5-15
Parts 4-10
Removal 3-94
Replacements 3-94
Keybutton Positions
Locations 5-14
PICs
300-1
Top Cover
Locations 5-15
Parts 4-10
