IBM Models 5 - Page 100

LCD Center
109.30
26.50
122.20
254.20
200.00
7.8
48.0
48.0
30.030.0
6.60
35.0
Ø 6.8 (4X)
LCD Center

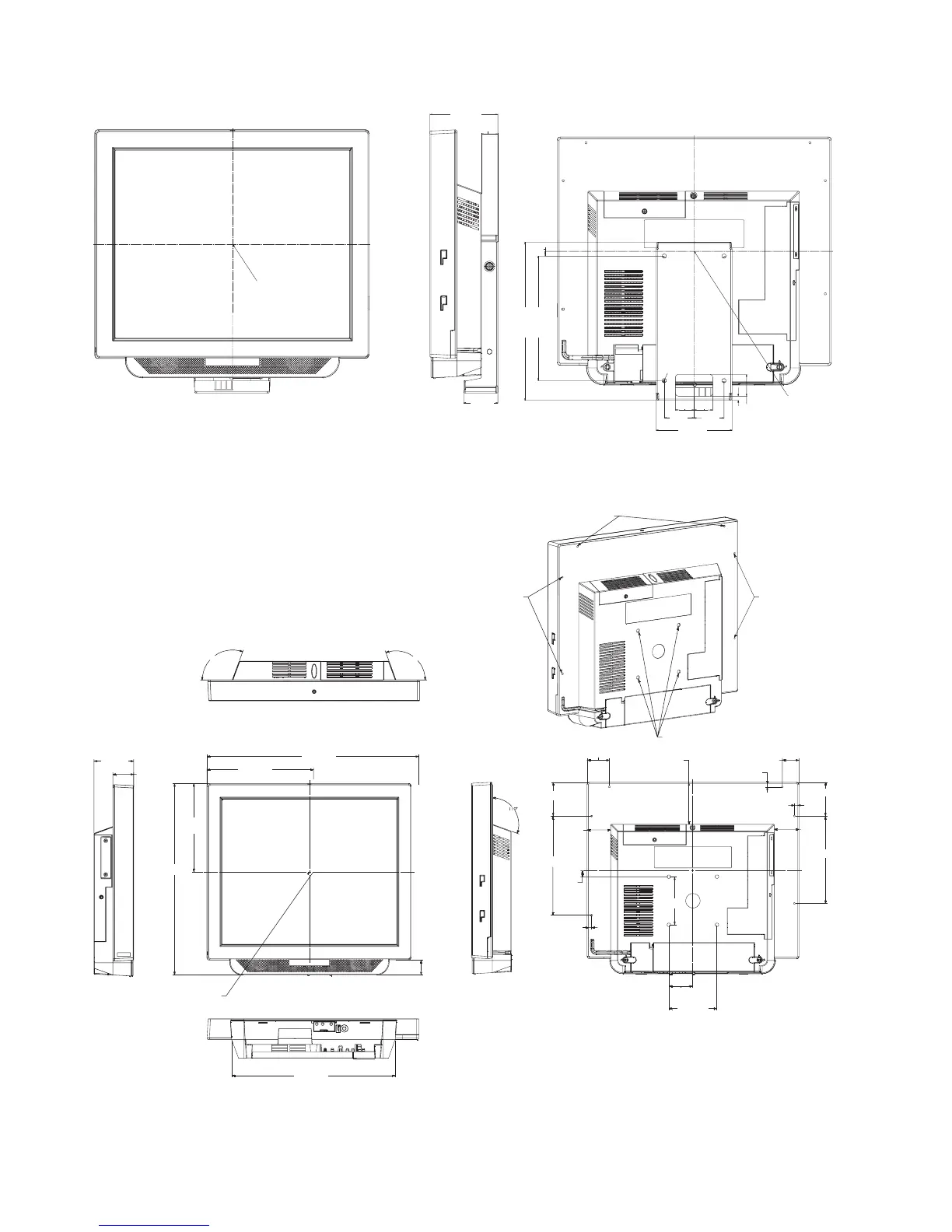

Figure 55. 19 in. system unit with wall mount
440.64
221.38
183.75
398.53
43.35
82.80
340.18
19 LCD Center
100.00
49.20
6.50
100.00
12.83
206.53
49.17
46.26
70.35
87.36
M4 Screw for Mounting
6.50
34.49
31.39
M3 Screw
For Accessories
M4 Screw for Accessories
M3 Screw
for Accessories
110°
110°
181.73
51.28
6.50
70.35
Figure 56. 19 in. system unit without features
Product dimensions
