Fastener types
Table 10 lists the different fasteners that you can use to mount the wall mount
plate. The fasteners are not drawn to actual size.

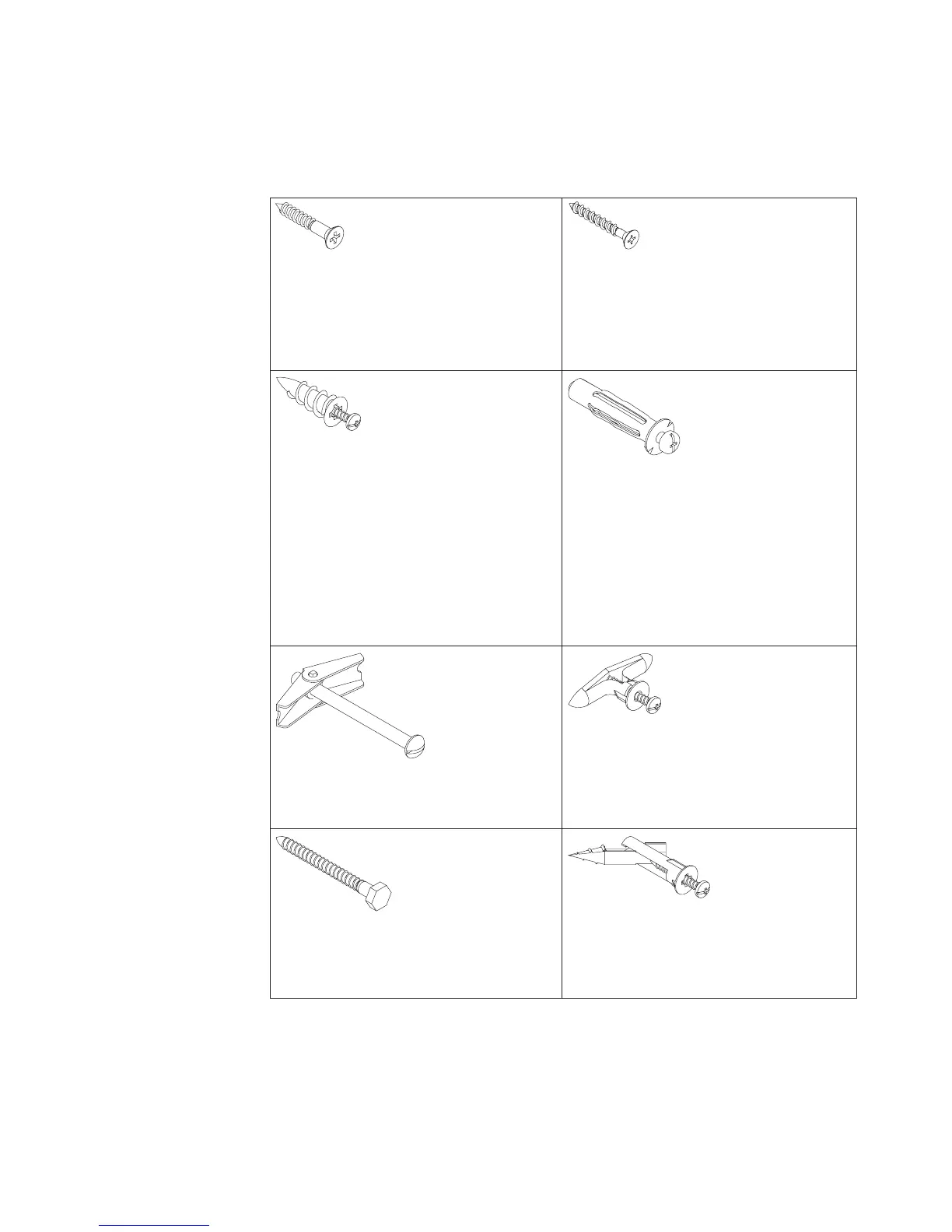

Table 10. Fastener types
Wood screw
Size: #12 or 5.5 mm nominal thread
diameter
Length: 38 mm (1.5 in.) minimum
Concrete Anchor
Size: 5 mm (3/16 in.) nominal
thread diameter
Length: 32 mm (1.25 in.) minimum
Note: Fastener has a high/low
thread that cuts its own threads.
Self-Drilling Drywall Anchor
Screw size: #8 or 4 mm nominal
thread diameter
Types: E-Z Anchor 50# (22 kg)
pullout rating or Cobra WallDriller
Hollow Wall Anchor
Screw size: 5 mm (3/16 in.) nominal
thread diameter
Note: Metal casing size is
dependent on wall board thickness.
During installation, grip head of
metal casing with pliers when
initially tightening the screw to flare
the legs. "No drill" or "drive" types
are not recommended.
Toggle Bolt
Screw size: 5 mm (3/16 in.)
nominal thread diameter
Plastic Toggle Bolt
Screw size: #8 or 4 mm nominal
thread diameter
Note: Toggle size is dependent on
wall board thickness.
Lag Screw
Screw size: 6.3 mm (1/4-in.) or
nominal thread diameter
Length: 2.5 in. or 60-mm minimum
Self-Drilling Drywall Toggle Bolt
Screw size: #8 or 4-mm nominal
thread diameter
Mounting the IBM AnyPlace Kiosk to the wall
Chapter 3. Mounting the IBM AnyPlace Kiosk to the wall 33
