IBM Models 5 - Page 98

LCD Center
104.80
65.85
122.20
254.20
200.00
9.2
48.0
24.88
30.0
30.0
6.60
41.60
Ø 6.8 (4X)
LCD Center
55.00
48.0

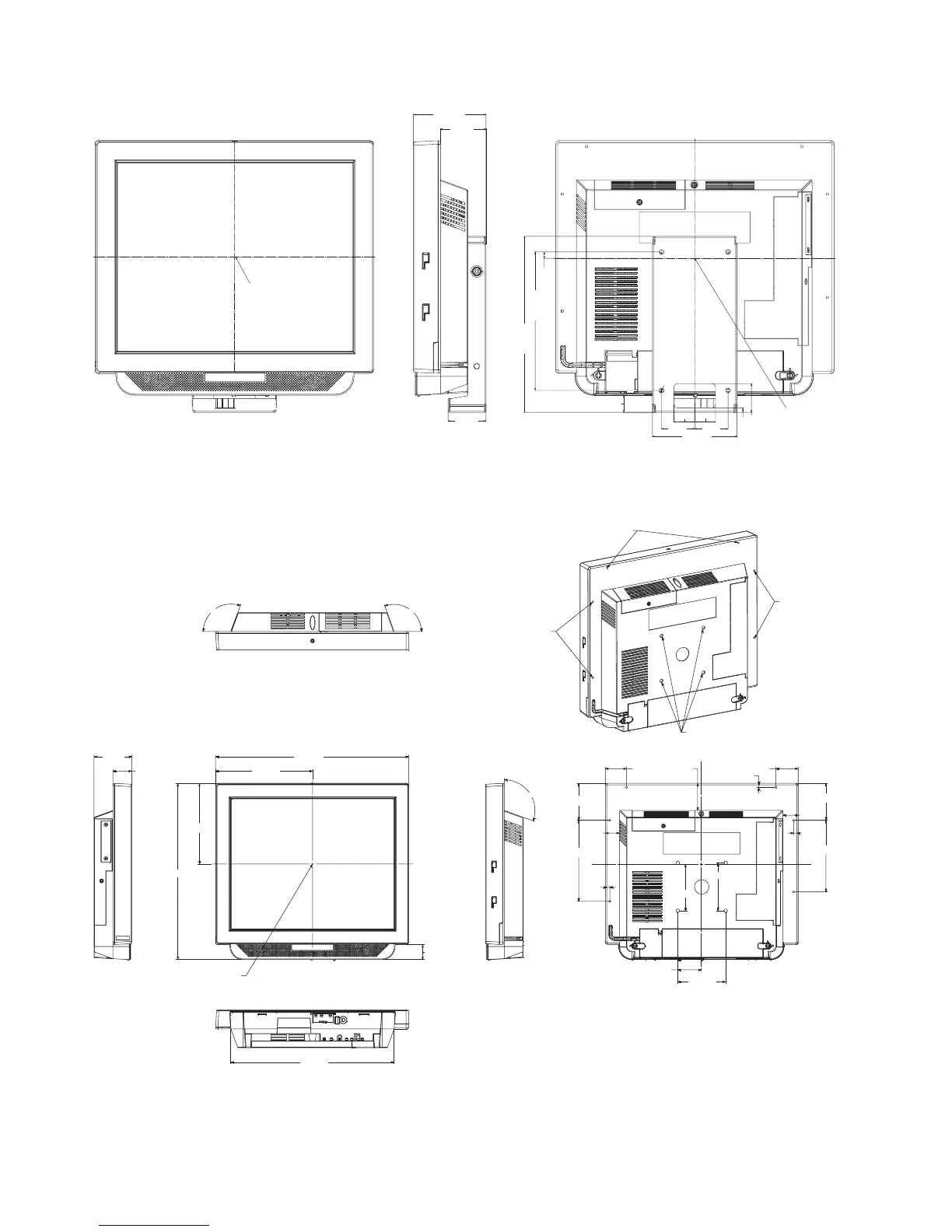

Figure 51. 17-in. system unit with wall mount
401.98
168.13
201.93
56.60
6.50
169.11
44.55
77.01
38.95
78.30
367.53
31.63
340.18
97.68
31.84
149.45
100.00
49.20
100.00
6.50
5.51
46.43
77.01
M4 screw for mounting
M3 screw for
accessories
M3 screw for
accessories
110°
M3 screw for
accessories
17 LCD Center
110°110°
28.96
Figure 52. 17 in system unit with features
Product dimensions
86
IBM AnyPlace Kiosk 4838
