254 IBM System Storage N series Hardware Guide
Enabling and configuring QLOGIC BootBIOS
Complete the following steps to configure QLOGIC BootBIOS:
1. Power on or reboot your host.

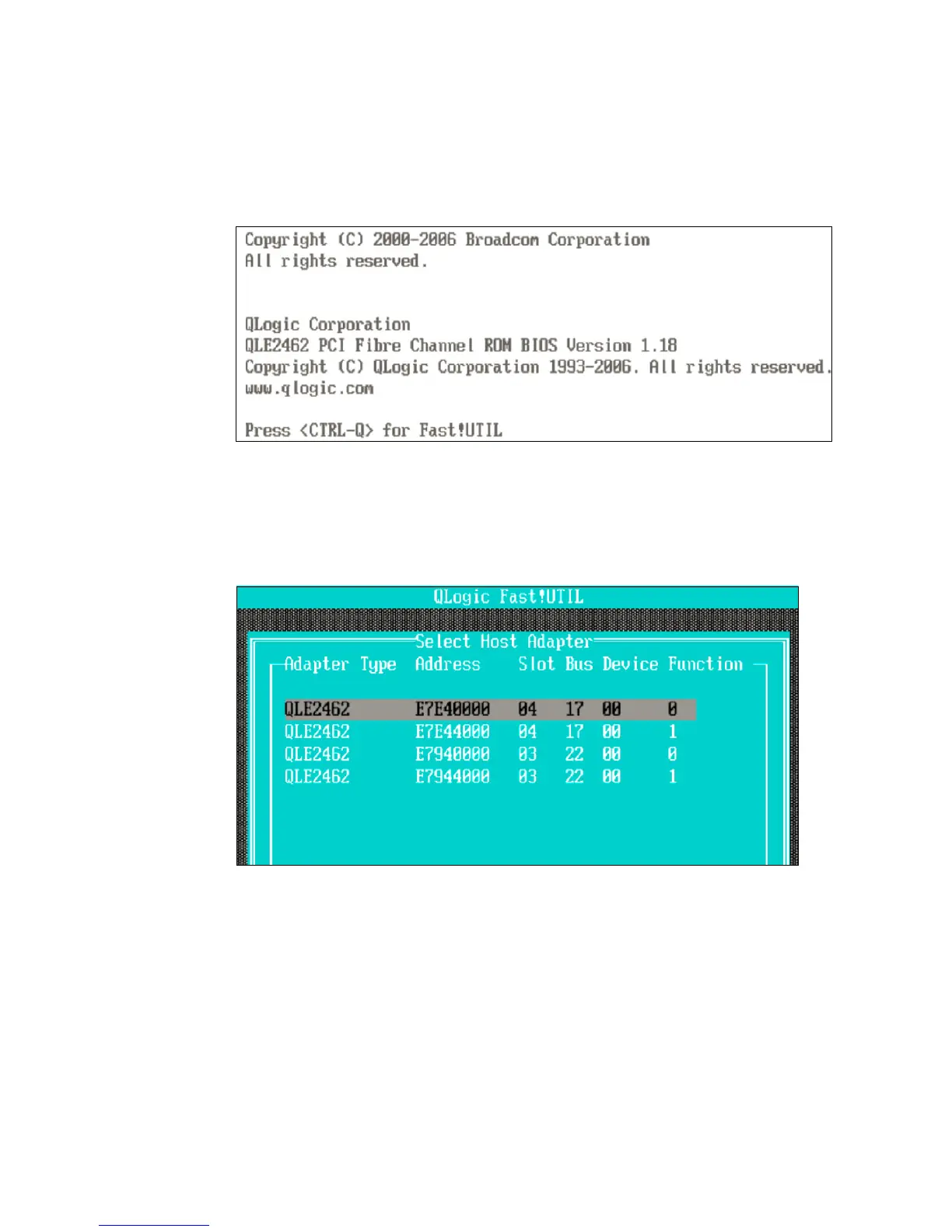

2. Press Ctrl+Q or Alt+Q to enter the BIOS configuration utility, as shown in Figure 18-22.
Figure 18-22 Pressing Ctrl+Q for Fast!UTIL panel
3. The QLogic Fast!UTIL displays the available adapters, which are listed in boot order. The
primary boot device is the first device that is listed. If the primary boot device is
unavailable, the host boots from the next available device in the list. Select the first Fibre
Channel adapter port and press Enter, as shown in Figure 18-23.
Figure 18-23 QLogic Fast!UTIL menu
