28 IBM System Storage N series Hardware Guide

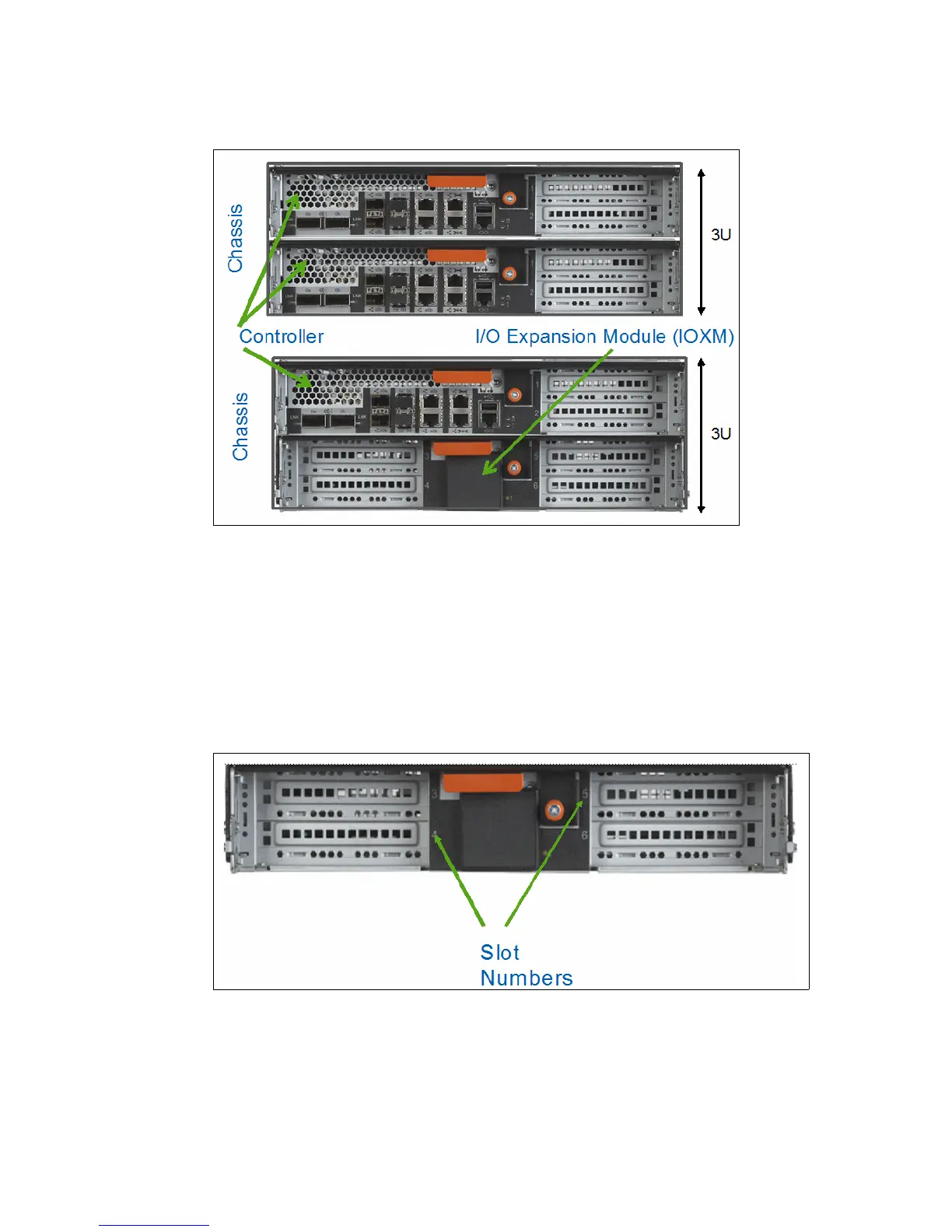

IBM N62x0 I/O configuration flexibility is shown in Figure 3-4.
Figure 3-4 IBM N62x0 I/O configuration flexibility
IBM N62x0 I/O Expansion Module (IOXM) is shown in Figure 3-5 and features the following
characteristics:
Components are not hot swappable:
– Controller panics if it is removed
– If inserted into running IBM N62x0, IOXM is not recognized until the controller is
rebooted
4 full-length PCIe v1.0 (Gen 1) x8 slots
Figure 3-5 IBM N62x0 I/O Expansion Module (IOXM)
