Chapter 3. Mid-range systems 29

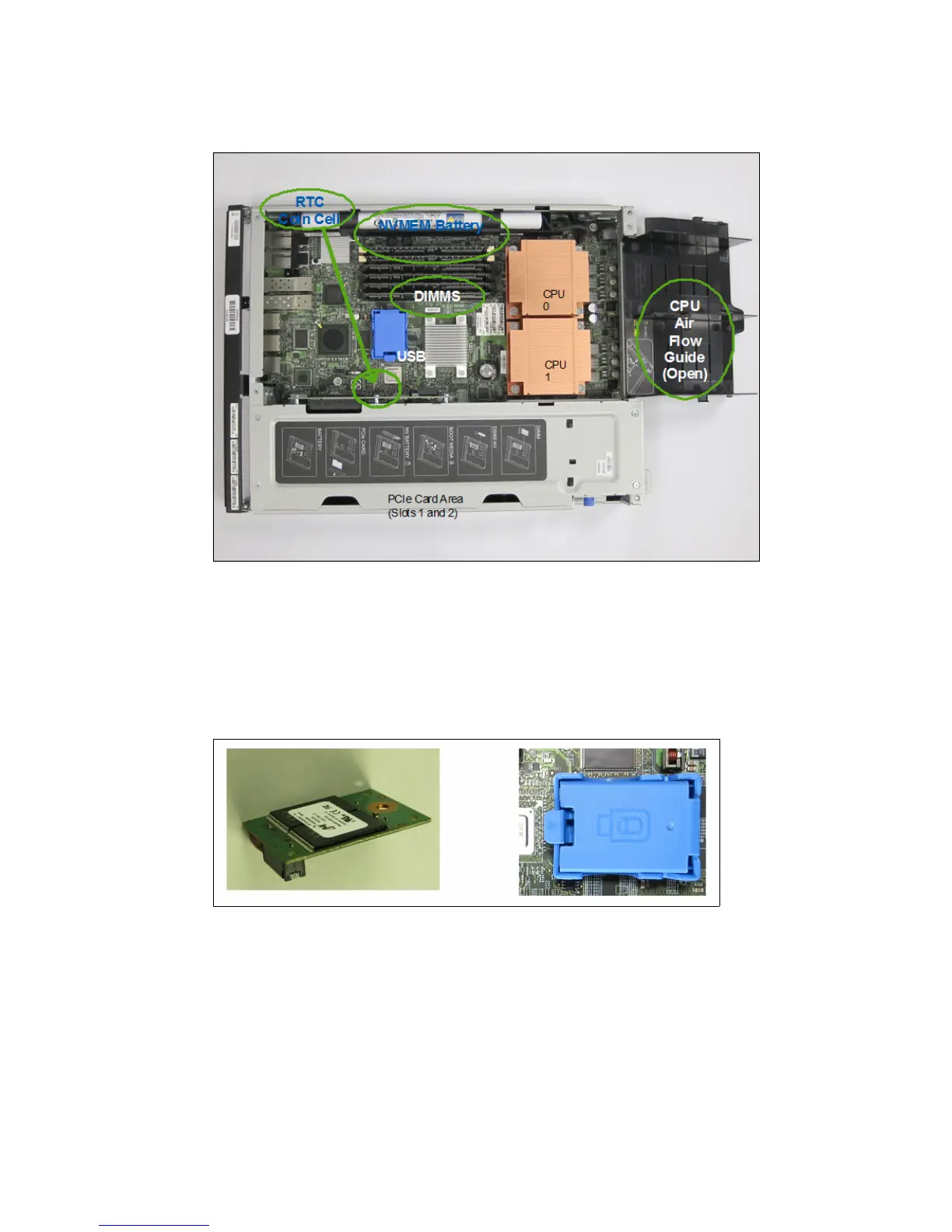

Figure 3-6 shows the IBM N62x0 system board layout.
Figure 3-6 IBM N62x0 system board layout
Figure 3-7 shows the IBM N62x0 USB Flash Module, which has the following features:
ň° It is the boot device for Data ONTAP and the environment variables
ň° It replaces CompactFlash
ň° It has the same resiliency levels as CompactFlash
ň° 2 GB density is used
ň° It is a replaceable FRU
Figure 3-7 IBM N62x0 USB Flash Module
