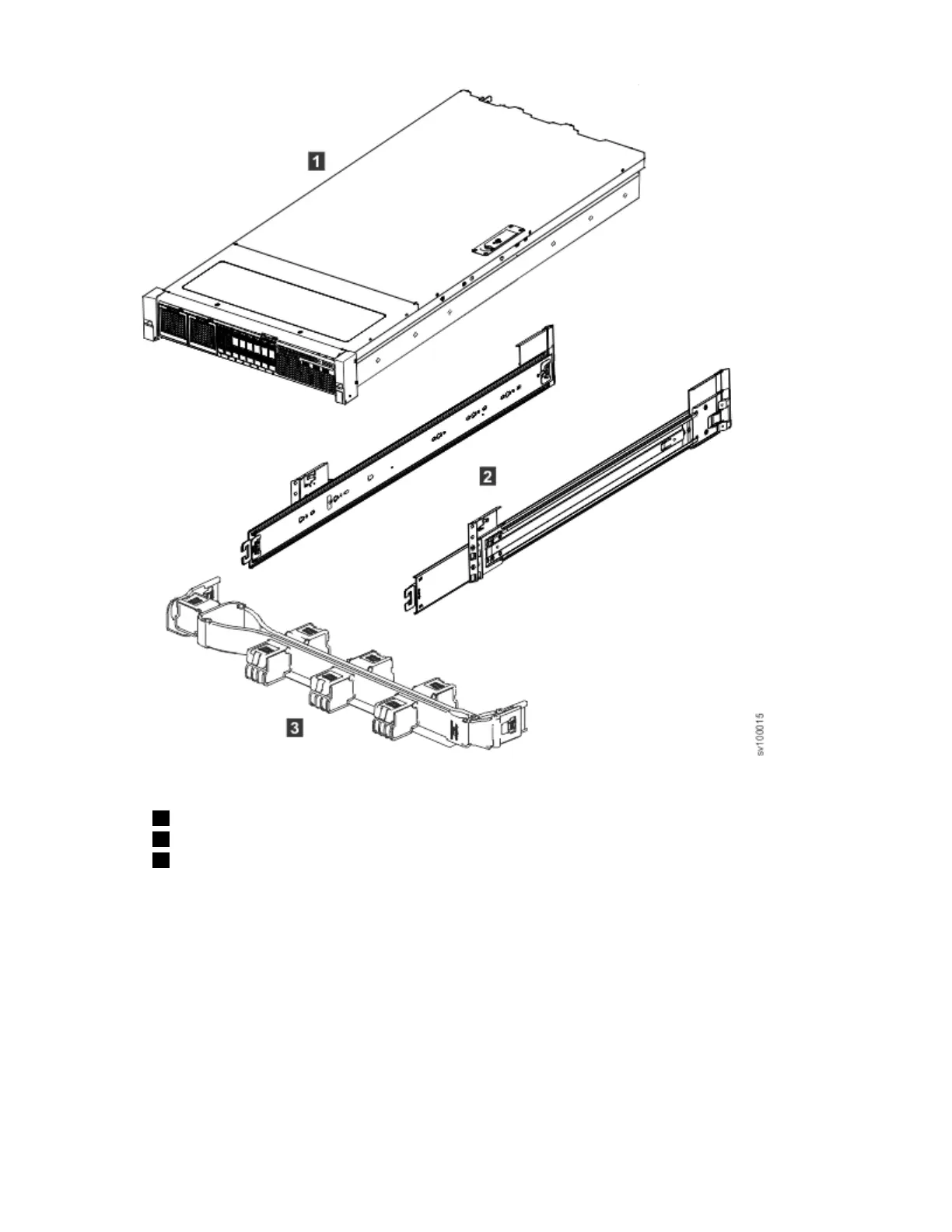

Figure 20. Parts provided for SAN Volume Controller 2145-SV1 hardware installation in a rack
1 SAN Volume Controller 2145-SV1 node
2 SAN Volume Controller 2145-SV1 support rails
3 SAN Volume Controller 2145-SV1 cable-management arm assembly
Country-specic power cables come with the SAN Volume Controller node. These cables are intended for
your country-specic power sockets.
Before you start the installation, verify that all the parts that were ordered have been received and that all
the optional features are tted. Verify that you know the quantity of nodes and optional features that were
ordered.
A label on the main shipping box indicates the features that were shipped.
Note: You must install at least two SAN Volume Controller nodes.
Procedure
To prepare for installation, complete the following steps.
1. Ensure that you have everything you need for installation, including the planning tables and charts.
18
SAN Volume Controller : Model 2145-SV1 Hardware Installation Guide
