ADT-enabled failover:
The multi-path driver starts using the alternate path by sending the I/O down the path it
chooses and lets the ADT react, which is the normal configuration setting for Novell
NetWare, Linux (when using FC HBA failover driver instead of RDAC), and Hewlett
Packard HP-UX systems. After the I/O data path problem is corrected, the preferred
controller automatically reestablishes ownership of the logical drive as soon as the
multipath driver detects that the path is normal again.
Phases of failover

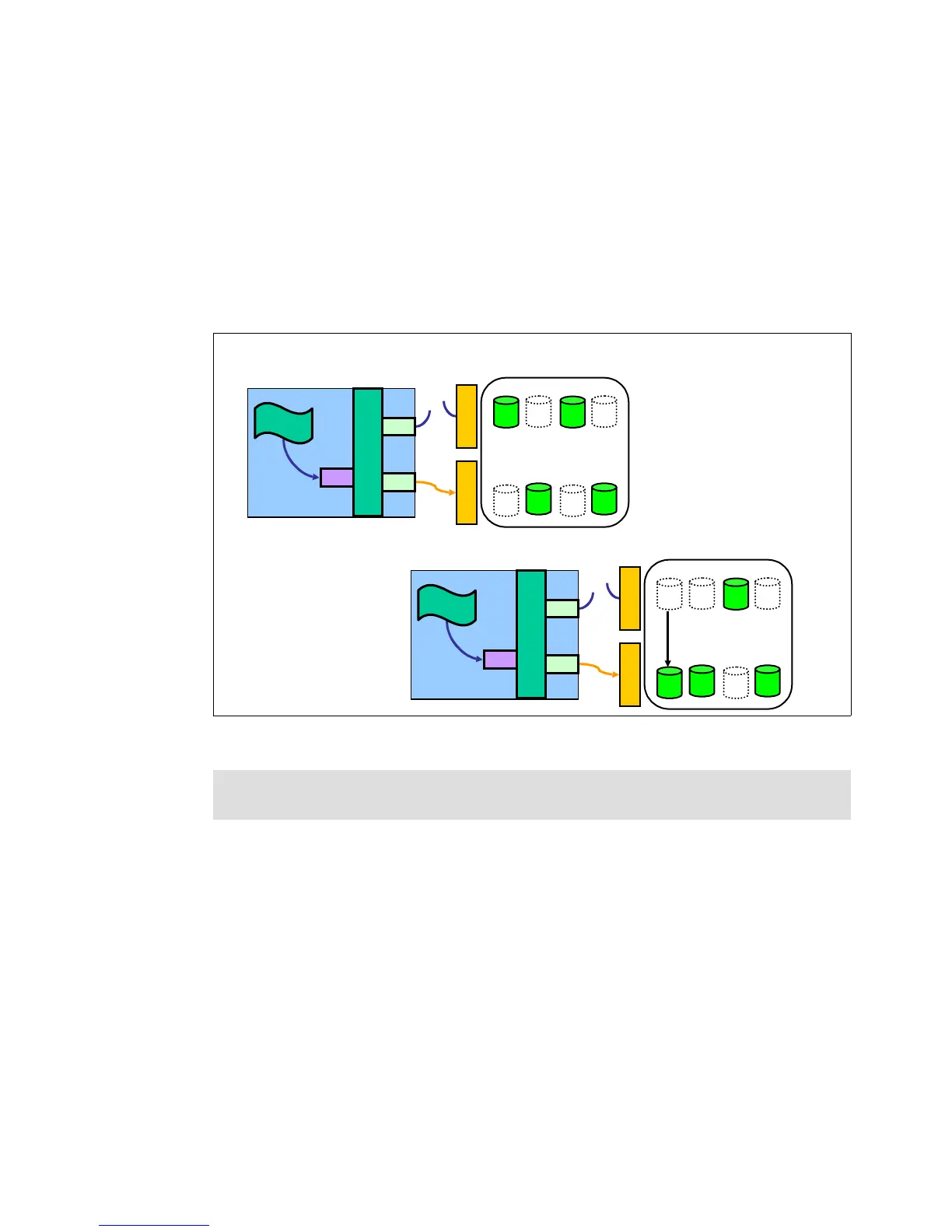

Figure 3-28 shows the phases of failover in an ADT-enabled case.
Figure 3-28 ADT-enabled mode path failover
3.7 Operating system restrictions
In your planning, you must also consider the restrictions of your operating system that might
apply. We have covered the maximum file system size ordered by the operating system and
their commonly used file systems, the maximum number of LUNs that can be assigned to one
host, and the maximum logical volume size supported by various operating systems.
Note: In ADT mode, RDAC automatically redistributes the LUNs to their preferred path
after the failed path is again operational.
