Chapter 6. Administration - Enterprise Management 165
Draft Document for Review March 28, 2011 12:24 pm 7914Admin_Enterprise1108.fm
6.2 Functions in the Enterprise Management window
Next, we describe the various functions that are available from the Enterprise Management
window.
6.2.1 Subsystem context menu

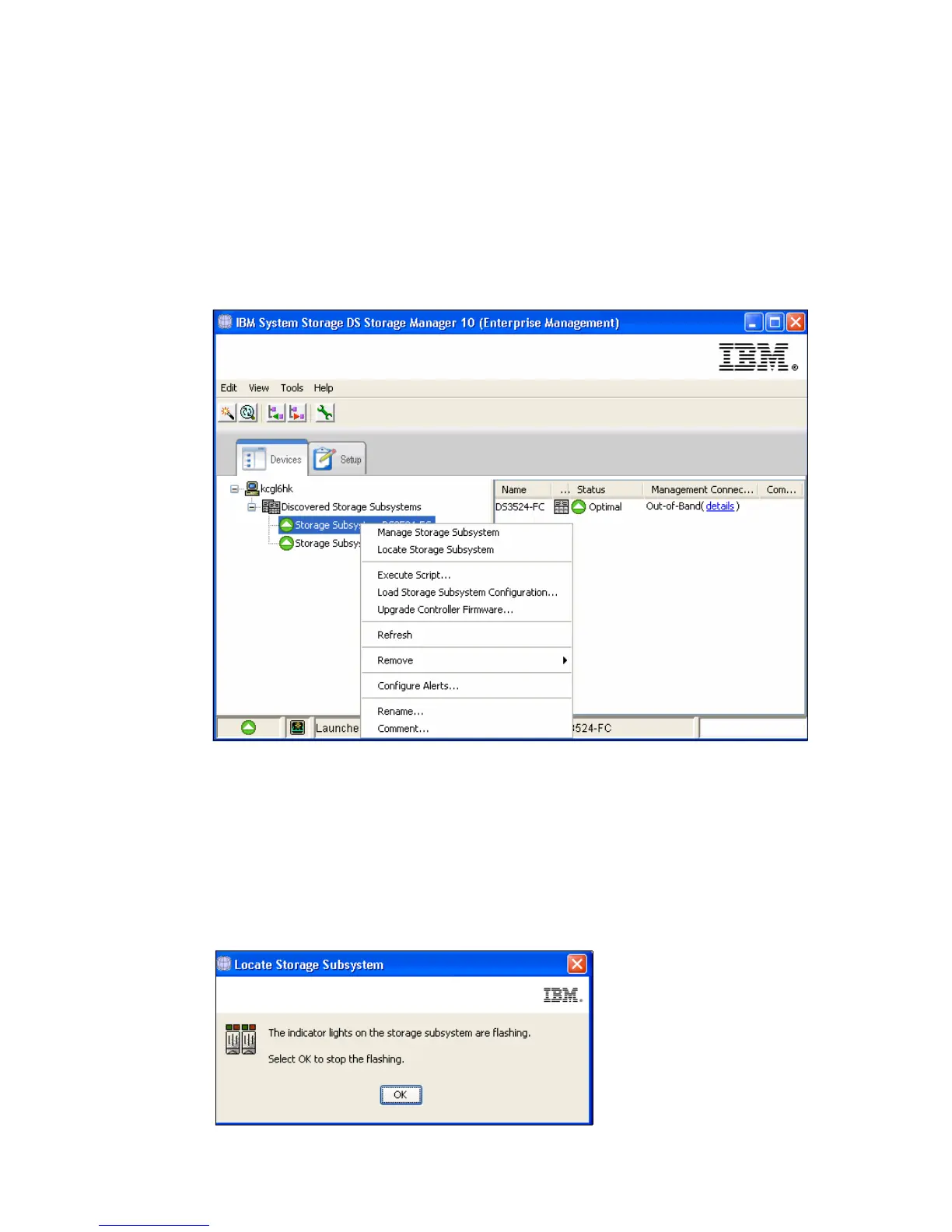

Right-click one of the subsystems to see the context menu with the tasks shown in Figure 6-4.
Figure 6-4 Context menu
Manage Storage Subsystem
This opens the Subsystem Management window. You can also double-click the system to
manage it.
Locate Storage Subsystem
If you have several storage subsystems installed, it can be hard to locate the right one. If you
select this option, the indicator light on the selected subsystem starts flashing (Figure 6-5).
Figure 6-5 Indicator lights are flashing
