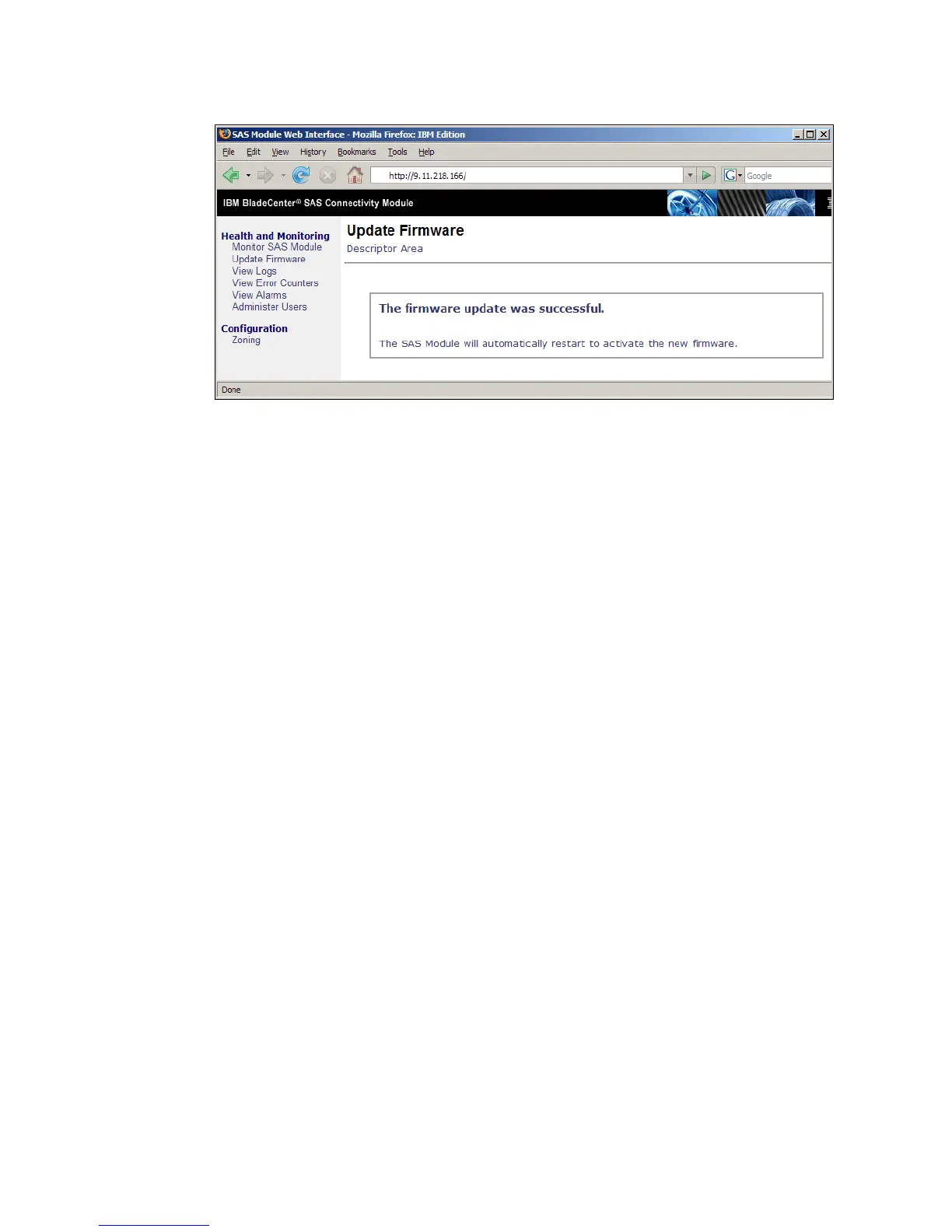

Figure 18-11 SAS Connectivity Module - Update successful
18.2.7 Configuring the SAS connectivity module
Ensure that the external ports on the SAS Connectivity Modules are enabled to allow
connectivity from the DS3500 System Storage subsystem and I/O traffic to pass through the
module.
