7914support2-0209.fm Draft Document for Review March 28, 2011 12:24 pm
340 IBM System Storage DS3500: Introduction and Implementation Guide

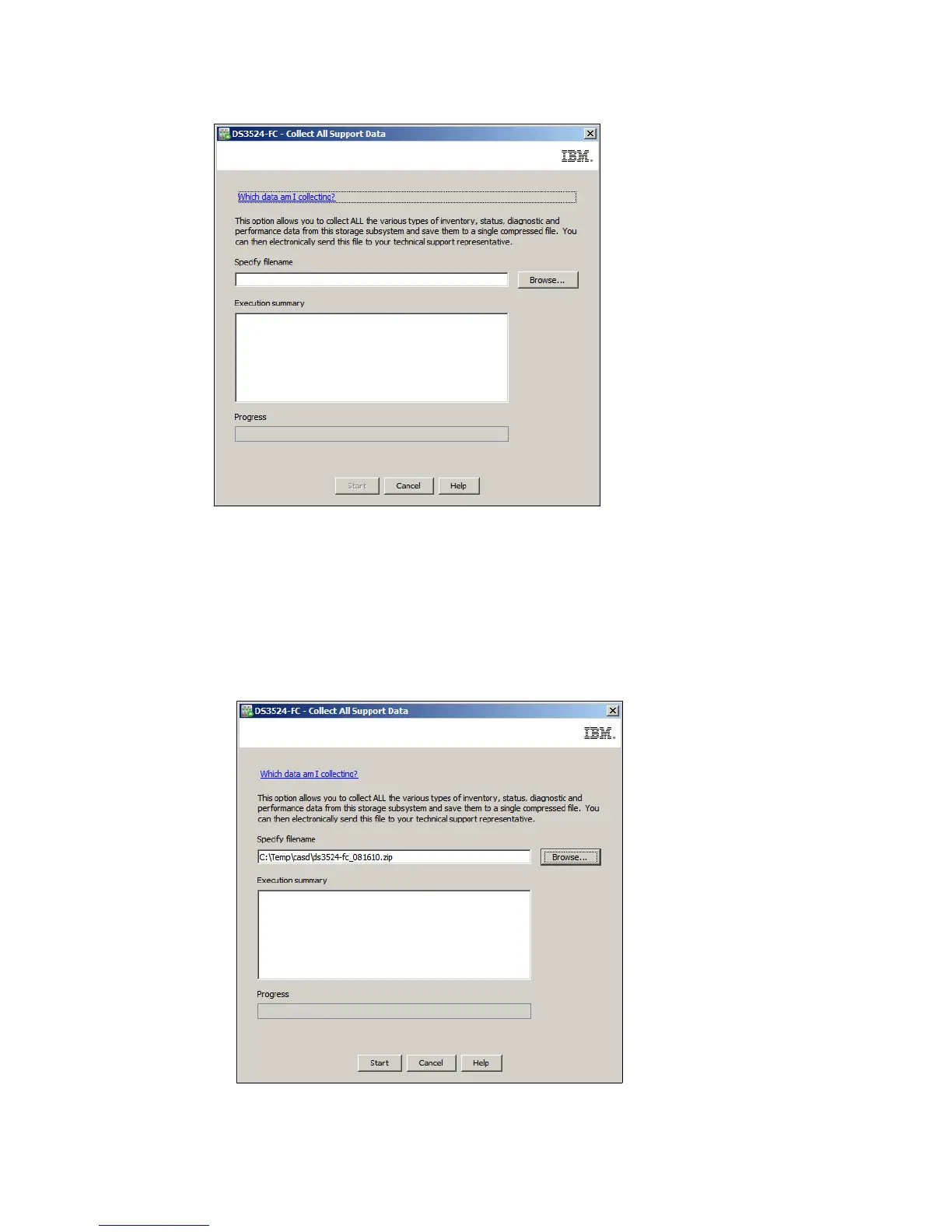

Figure 14-3 Collect All Support Data window
14.2.1 Saving the Support Data
Use the following step-by-step procedure to save the support data:
1. Open the Collect All Support Data window and click the Browse... button to specify the
filename and folder location where the wizard will save the collected support data, as in
Figure 14-4.
Figure 14-4 Collect All Support Data - specify the filename and folder location
2. Click on the Start button to begin the data collection as in Figure 14-5 on page 341
