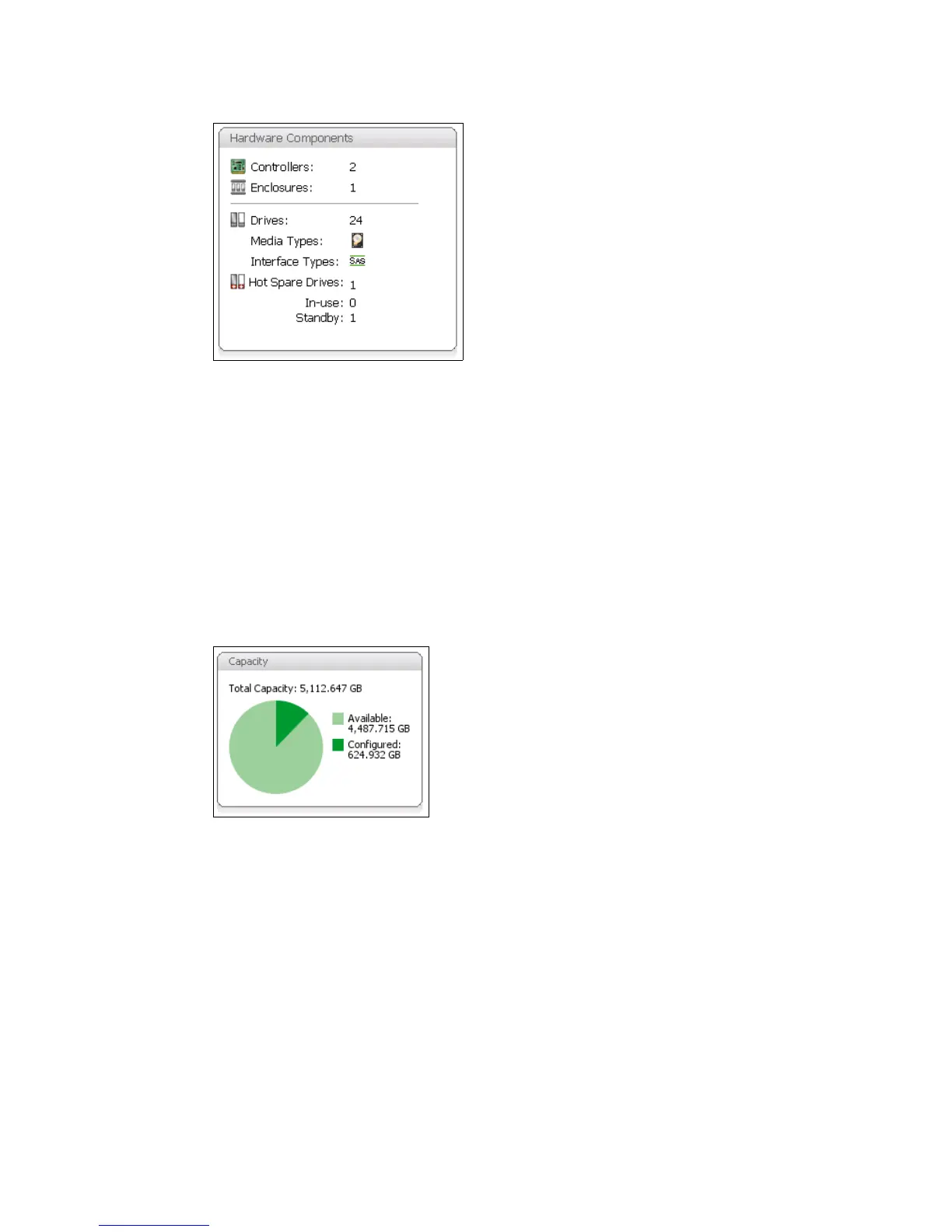

Figure 7-8 Hardware Components
For information how to get more information about HW component go to Chapter 10,
“Administration - Physical Tab” on page 263.
7.3 Capacity
The Capacity box is located at the top of the middle column and is shown in Figure 7-9. It
displays the overall capacity of your subsystem, that is the total capacity of the installed disk
drives. Darker green color is used to show already configured capacity in logical volumes, and
light green color is for the capacity that can be used for configuration of new Arrays and
Logical Drives.
Figure 7-9 Capacity - Configured and unconfigured capacity
