7914Admin_Mappings.fm Draft Document for Review March 28, 2011 12:24 pm
302 IBM System Storage DS3500: Introduction and Implementation Guide

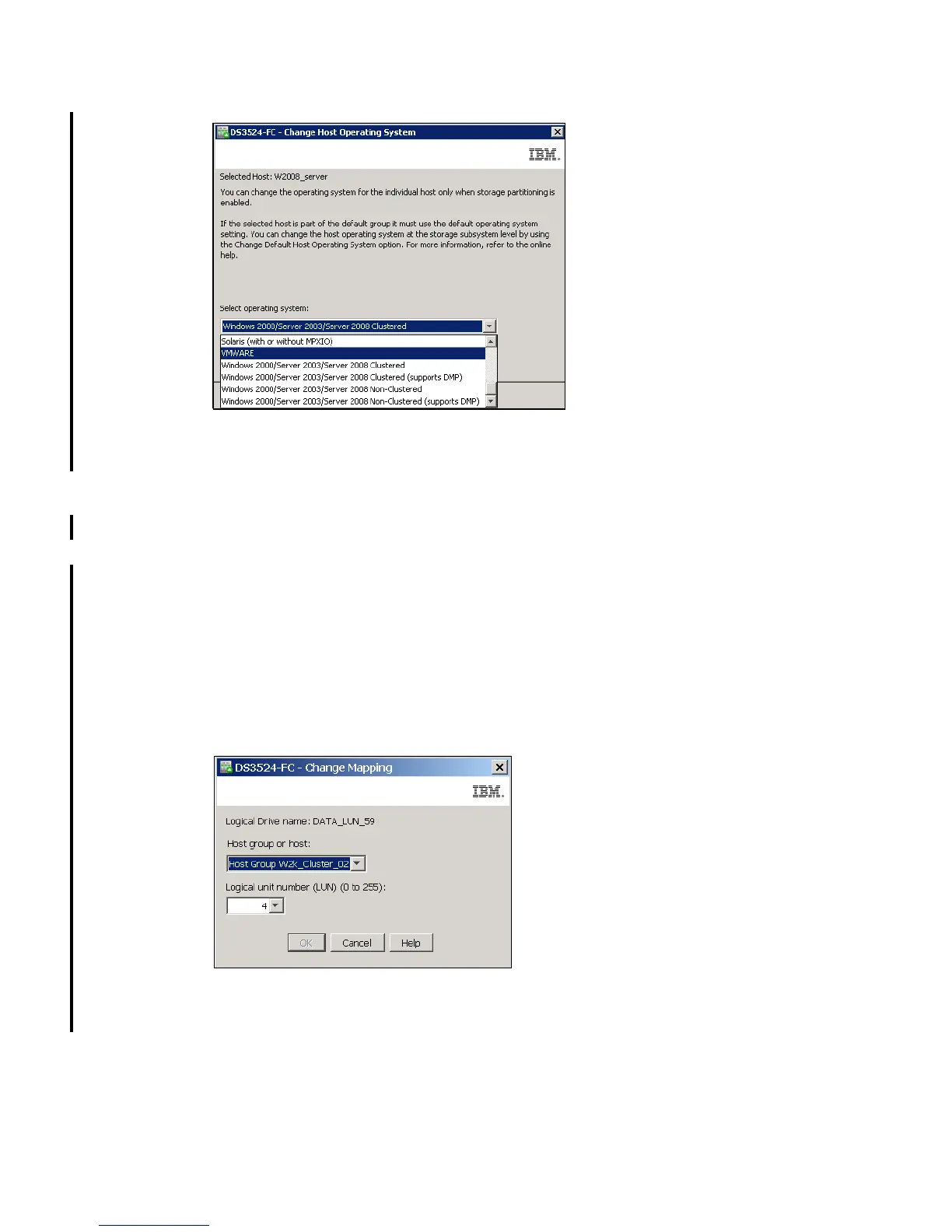

Figure 11-25 Change host type
Select required operating system, click OK and change is accepted immediately.
11.10 Change and Remove Mapping
Till now, all described mapping configuration changes were provided in the Topology pane.
In the right Defined Mapping pane, you can see mapped logical drives. The logical drives
displayed there are mapped to the host that is selected in Topology pane. Select a Logical
Drive, right click, and two options appears:
Change Mapping
Select this option to change host or host group, where the Logical Drive will be newly
mapped, and/or you can change LUN number. the change mapping window is shown in
Figure 11-26.
Figure 11-26 Change Mapping - Host and LUN number
Click OK and a warning window opens (Figure 11-27 on page 303).
