Chapter 4. IBM System Storage DS3500 and EXP3500 Cabling 97
Draft Document for Review March 28, 2011 12:24 pm 7914Cabling2-1908.fm

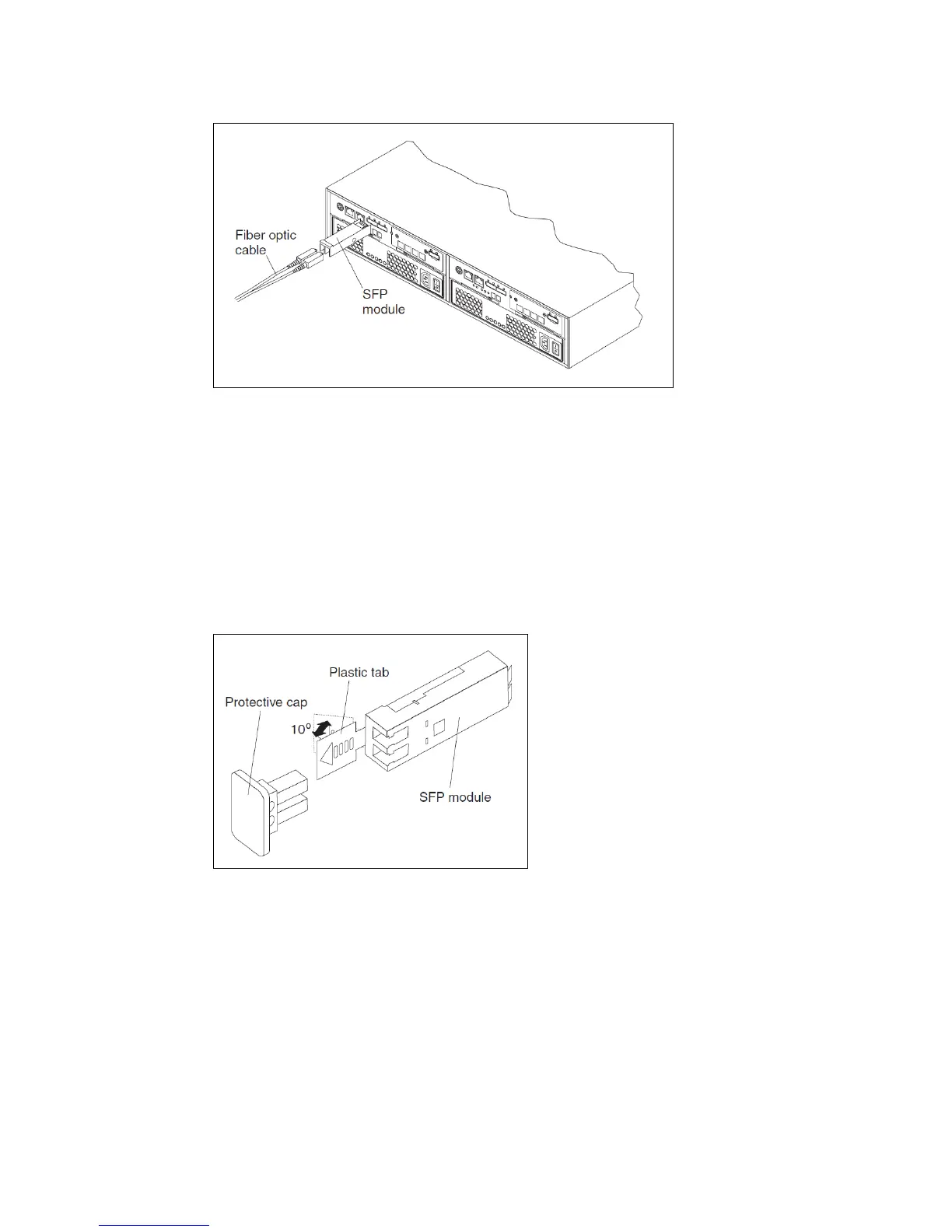

Figure 4-12 Installing an SFP module into the host port
5. Connect an LC-LC Fibre Channel cable.
Removing SFP modules
To remove the SFP module from the host port, complete the following steps:
1. Remove the LC-LC Fibre Channel cable from the SFP module.
2. Unlock the SFP module latch:
– For SFP modules that contain plastic tabs, unlock the SFP module latch by pulling the
plastic tab outward 10°, as shown in Figure 4-13.
Figure 4-13 Unlocking the SFP module latch - plastic variety
– For SFP modules that contain wire tabs, unlock the SFP module latch by pulling the
wire latch outward 90°, as shown in Figure 4-14 on page 98.
