Chapter 5. Installing IBM System Storage DS Storage Manager 141

Draft Document for Review March 28, 2011 12:24 pm 7914InstallSM01108.fm

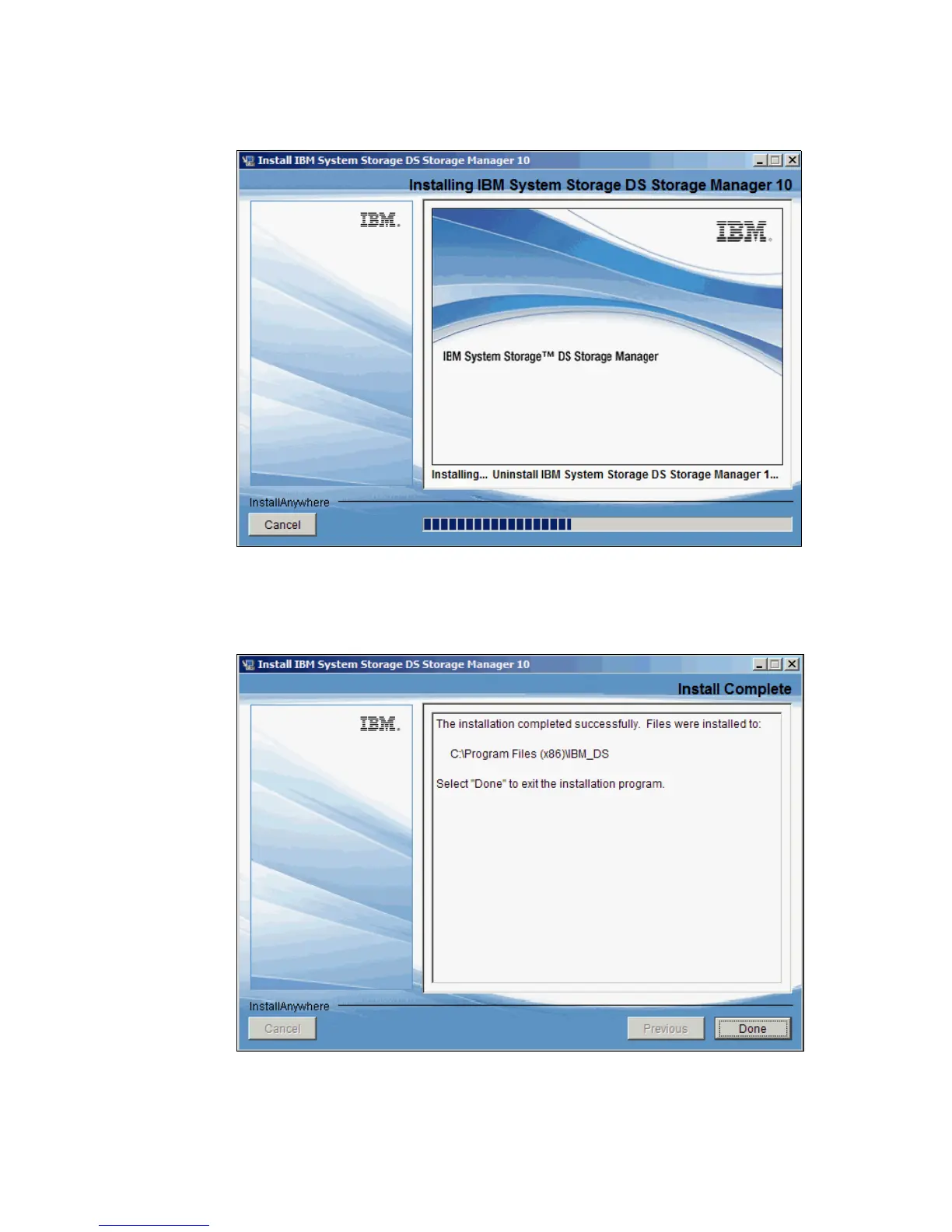

12.The installation status window will appear during the installation, as shown in Figure 5-12.

Figure 5-12 IBM DS Storage Manager Installation status window

After the installation has finished, verify that there were no errors and click Done. See

Figure 5-13.

Figure 5-13 IBM DS Storage Manager Install Complete
