7914Admin_Mappings.fm Draft Document for Review March 28, 2011 12:24 pm
290 IBM System Storage DS3500: Introduction and Implementation Guide
right corner of this window. You can use this script command for example to easily change
the host definition for mapping copies of logical drives in some high level script for a
disaster recovery.

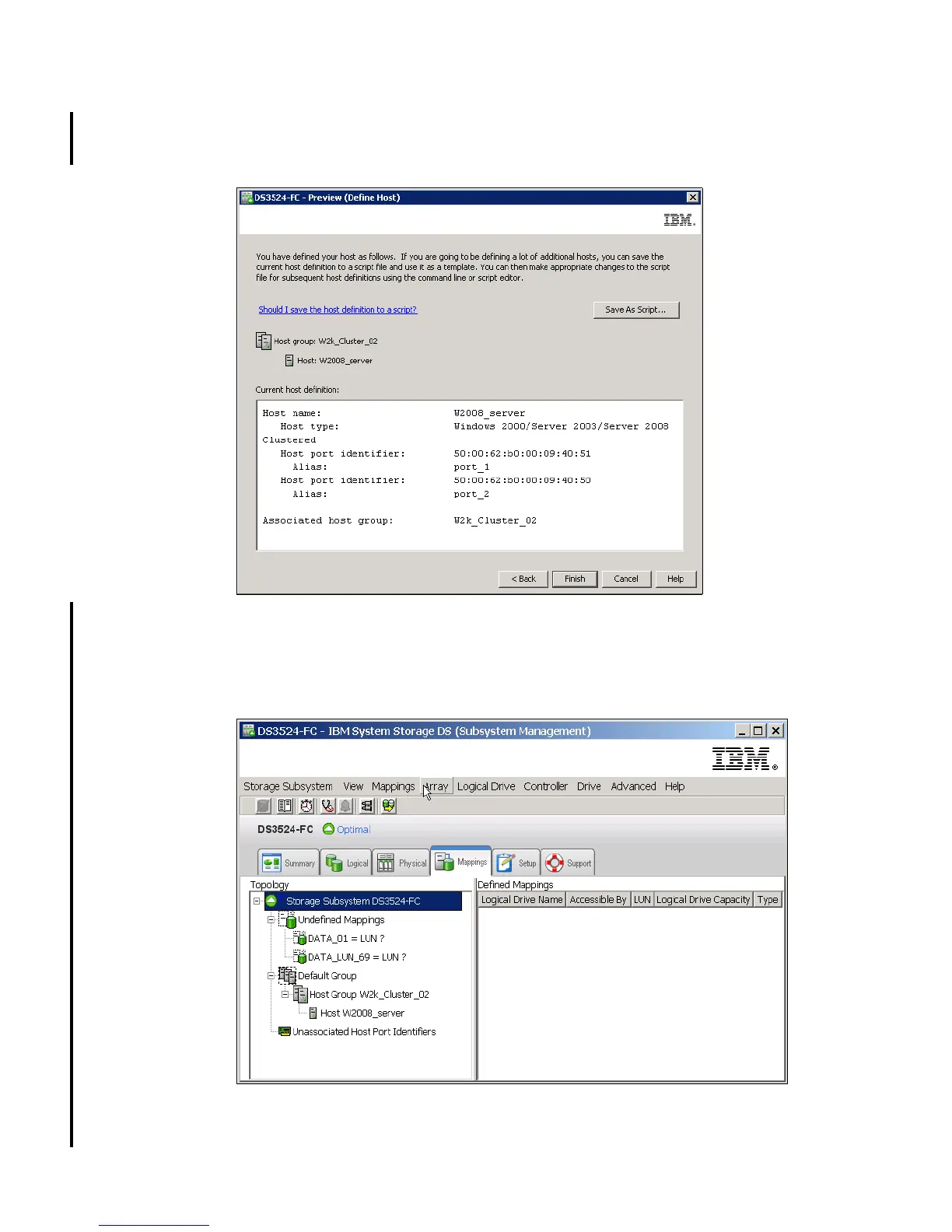

Figure 11-10 Define Host: new Host definition Preview
9. Once finished, the new host (and the host group, if it was also defined) is placed in the
Default Group in the Topology tree (Figure 11-11). It will stay there until you actually create
a storage partition by assigning the logical drives to that host (or host group).
Figure 11-11 Host defined
10.Repeat the same steps to create more hosts and host groups.
