Chapter 11. Administration - Mappings Tab 299
Draft Document for Review March 28, 2011 12:24 pm 7914Admin_Mappings.fm

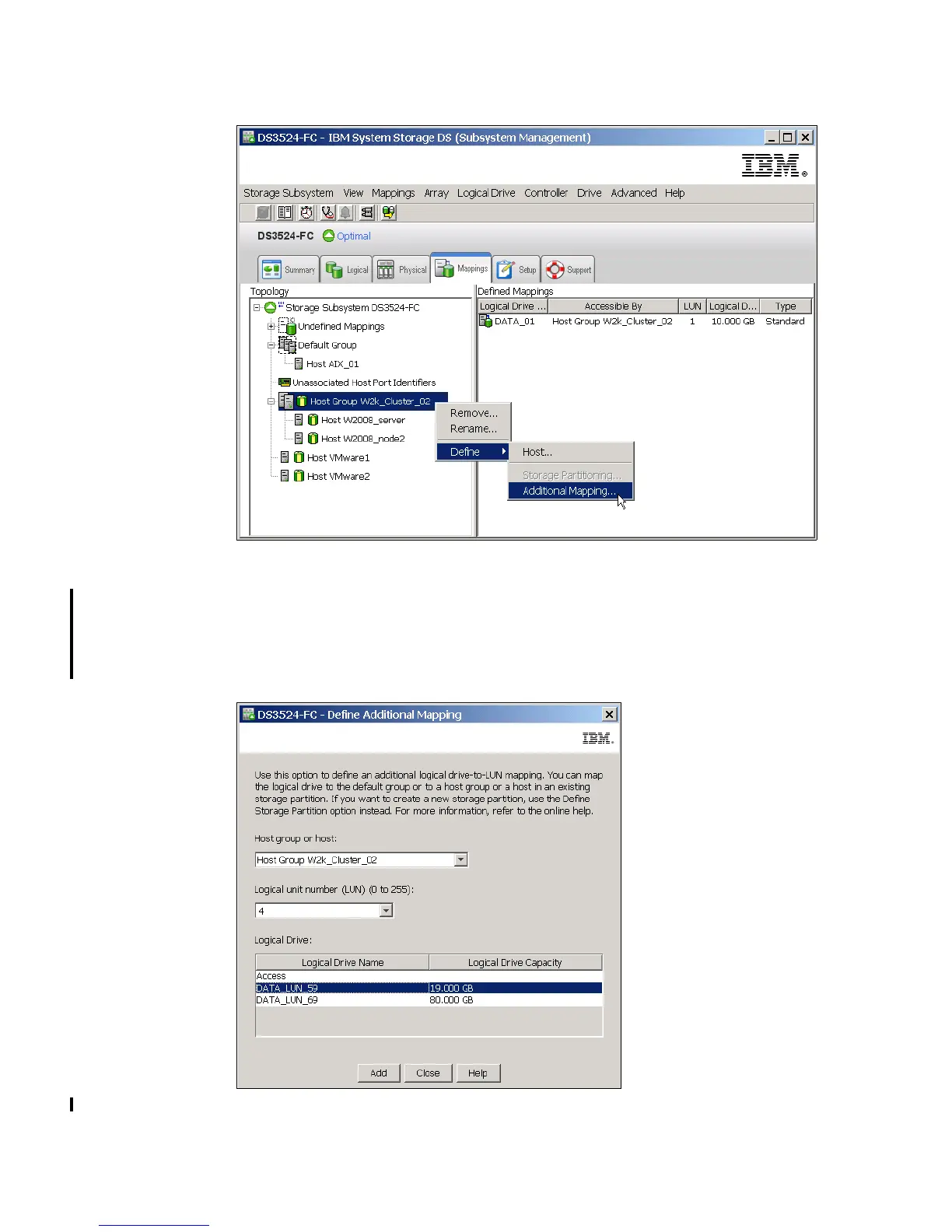

Figure 11-21 Define Additional Mapping
2. In the Define Additional Mapping window (Figure 11-22), select logical drive you want to
map to this host group or host, and assign the correct LUN number. Your host group or
host is already preselected. In case you selected a Logical Drive in Undefined Mapping
section for additional mapping, you need to select the host or the host group, where it has
to be mapped, and correct LUN number. The logical drive is preselected in this case.
Figure 11-22 Additional Mapping - select Logical Drive
