7914support2-0209.fm Draft Document for Review March 28, 2011 12:24 pm
384 IBM System Storage DS3500: Introduction and Implementation Guide

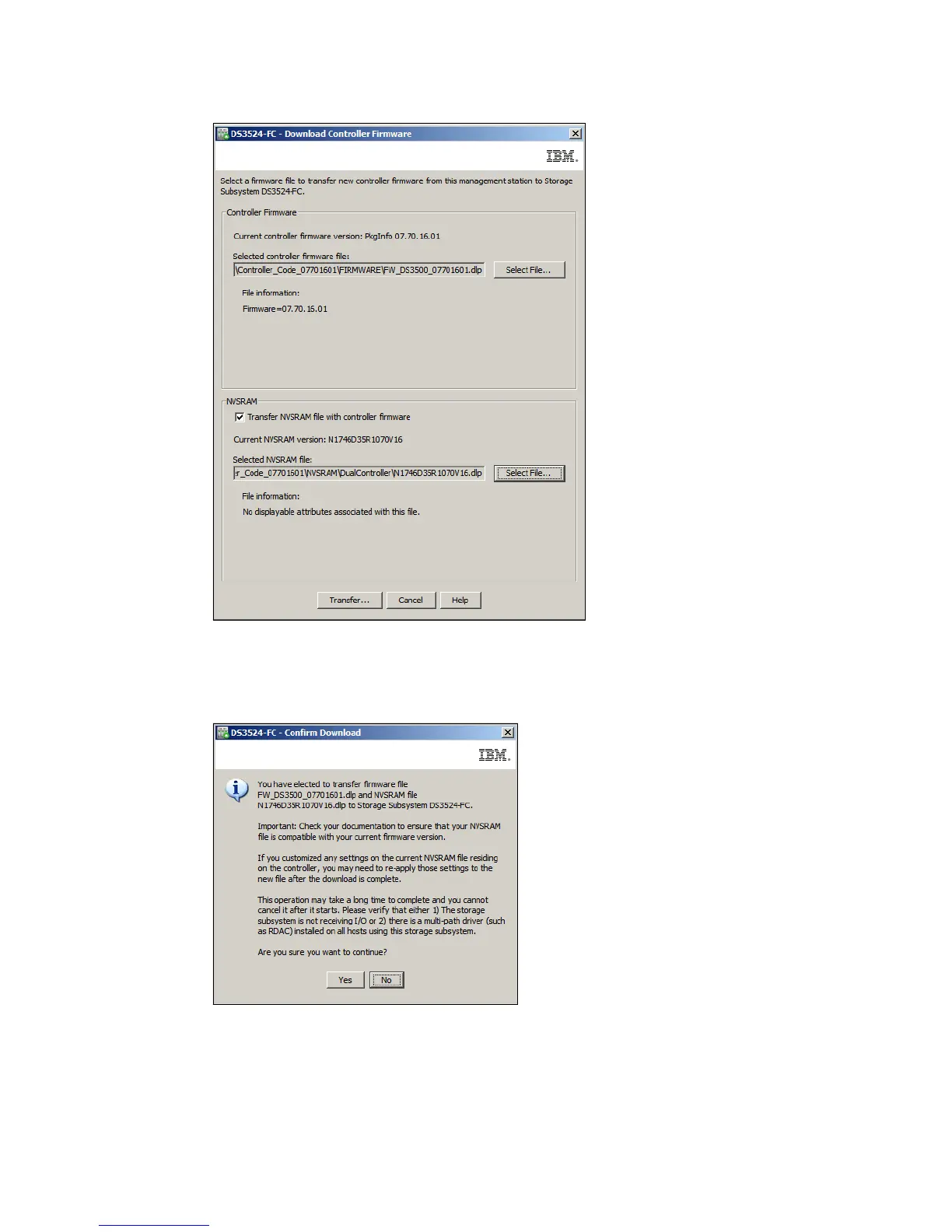

Figure 14-70 Download Controller Firmware - With NVSRAM firmware
6. Click Transfer to submit the new microcode to the storage subsystem. The Confirm
Download window appears (Figure 14-71). Read it and click Yes to continue.
Figure 14-71 Confirm Download
7. The microcode will now be transferred to the storage subsystem and applied to both
installed controllers. This may take some time and you can monitor the status in the
Downloading window that appears (Figure 14-72 on page 385).
