Chapter 14. Administration - Support 403
Draft Document for Review March 28, 2011 12:24 pm 7914support2-0209.fm
cannot exceed the maximum number of logical drives supported by the storage
subsystem.
– Make sure that the latest version of firmware is installed on the controller.
– Make sure the target storage subsystem supports RAID 6 if you are exporting a RAID 6
array.
– Make sure that the latest version of the storage manager software is installed for the
target storage subsystem.
Export Array procedure
In this section we describe the procedure to export an array.
1. Open the Storage Manager logical tab and select the array to be exported. Go to the
Advanced ï‚® Maintenance ï‚® Export Array menu command, as shown in
Figure 14-101.

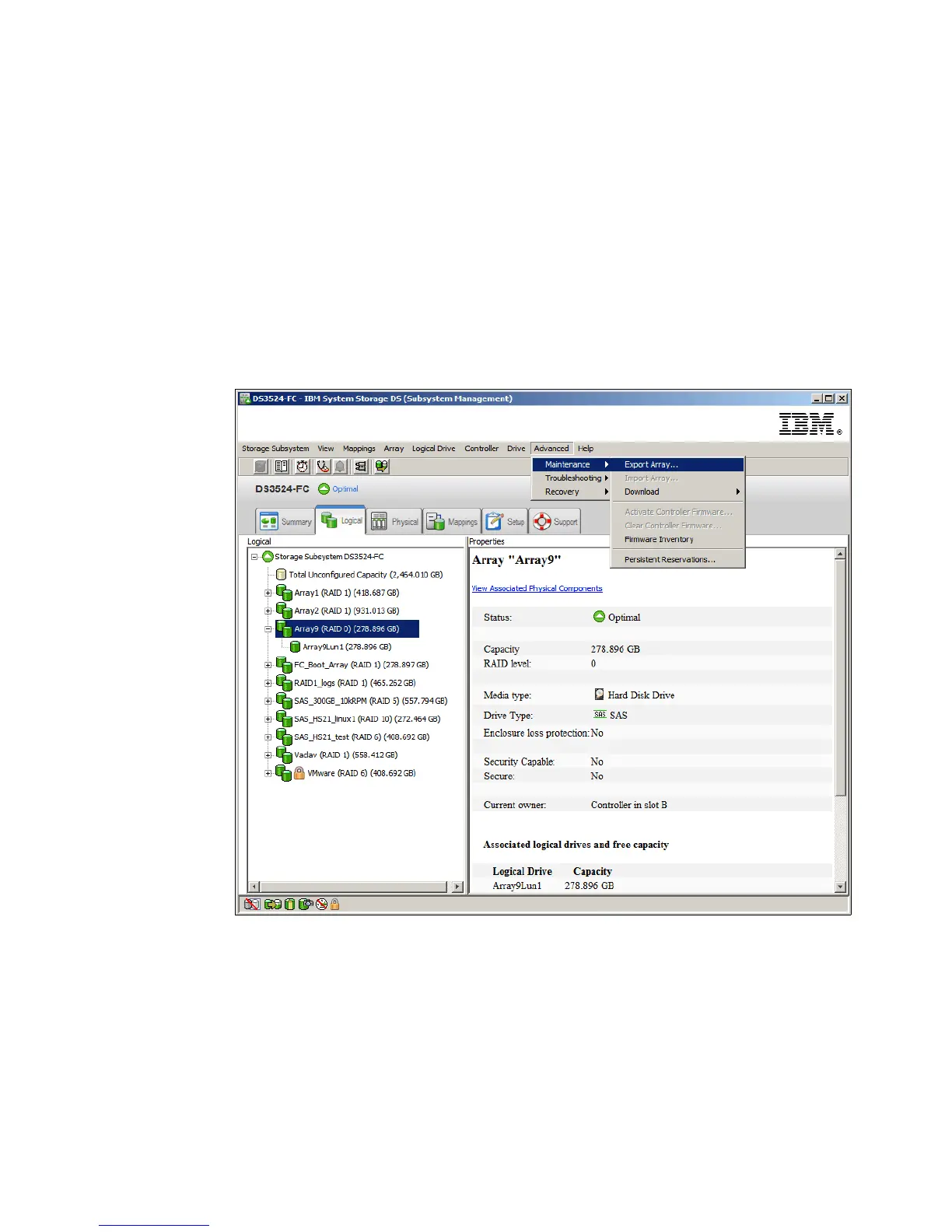

Figure 14-101 Select an Array to be exported
2. The Introduction (Export Array) window opens as shown in Figure 14-102 on page 404.
Read the information and click the Next button to continue.
