Chapter 14. Administration - Support 437

Draft Document for Review March 28, 2011 12:24 pm 7914support2-0209.fm

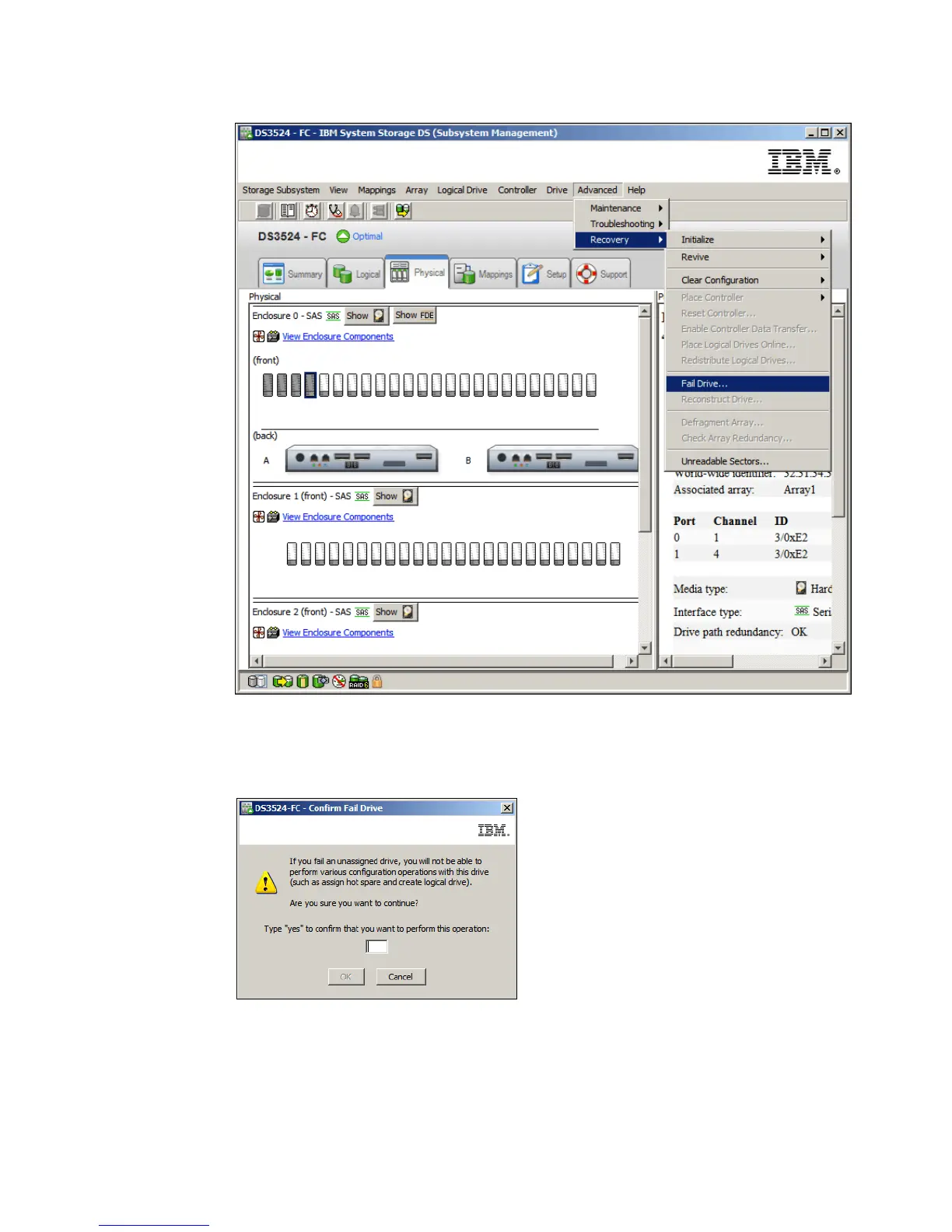

Figure 14-143 Fail Drive

2. You will be asked to confirm that you want to fail the selected drive, as shown in

Figure 14-144.

Figure 14-144 Confirm Fail Drive

3. Read the information and then click the OK button to fail the drive.
