Chapter 14. Administration - Support 443

Draft Document for Review March 28, 2011 12:24 pm 7914support2-0209.fm

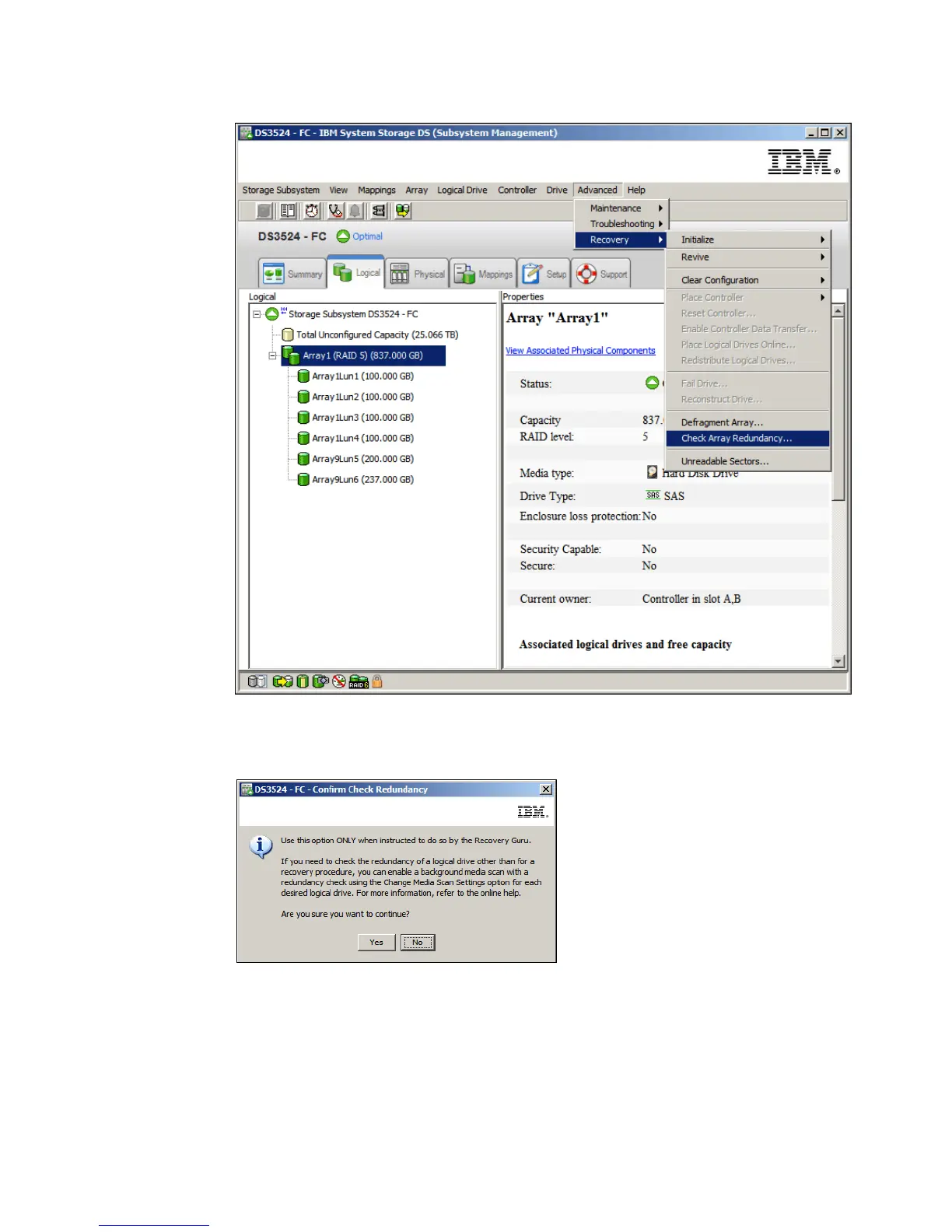

Figure 14-151 Check Array Redundancy

2. The windows shown in Figure 14-152 will be displayed.

Figure 14-152 Confirm Check Redundancy

3. Read the information and click the Yes button to display the Check Redundancy window

as shown in Figure 14-153 on page 444.
