7914RSM.fm Draft Document for Review March 28, 2011 12:24 pm

516 IBM System Storage DS3500: Introduction and Implementation Guide

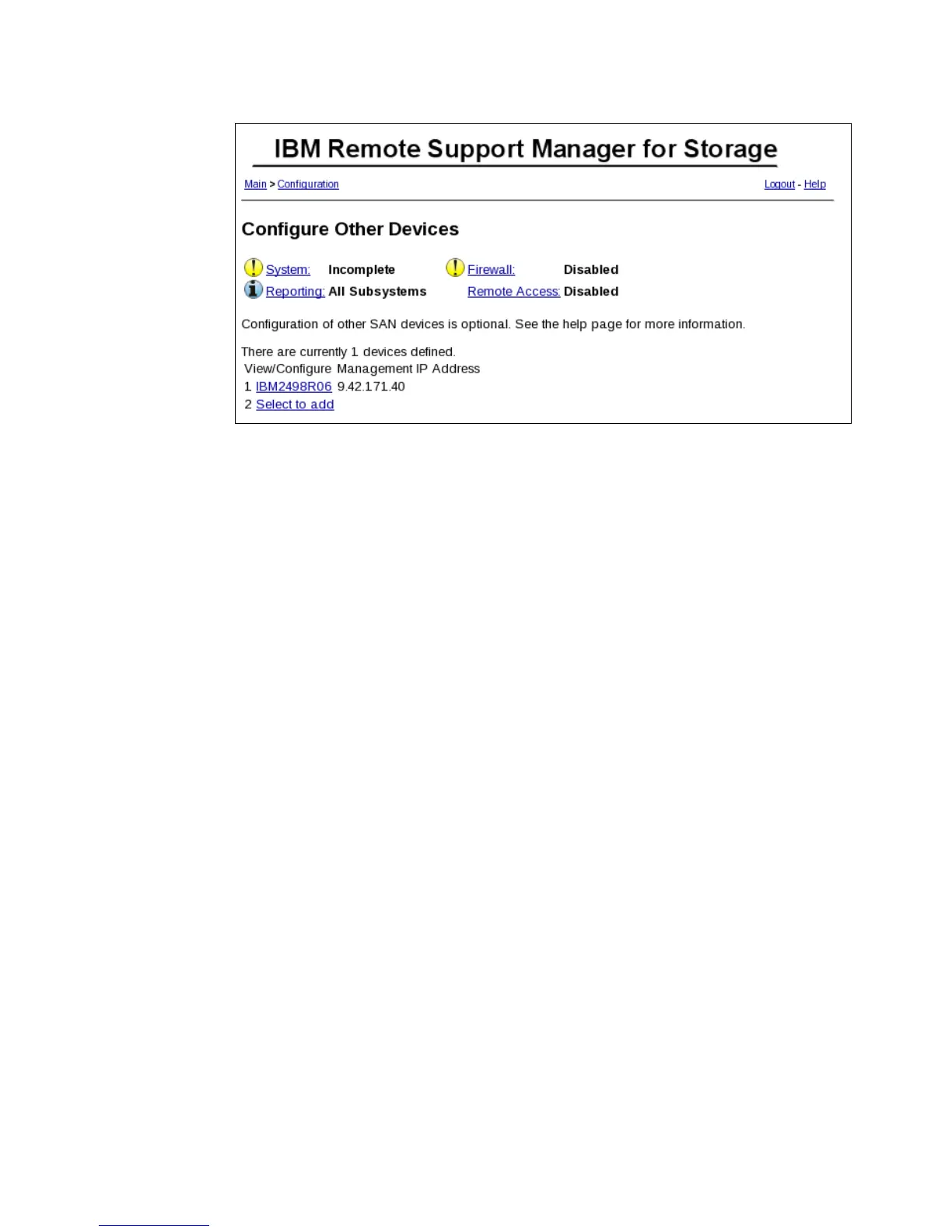

Figure 16-24 RSM Add other SAN Devices continued...

22.After entering all the desired information, you can verify the information by pressing the

Run Configuration Test button as shown in Figure 16-25 on page 517
