You can select from five predefined zone configuration options. In this example, option 5
predefined zone configuration is currently active (indicated by a check mark), as shown in
Figure 18-13. With this option, each server bay is exclusively zoned with all the external ports,
thus allowing access to one or more storage controller ports connected to the SAS
Connectivity Module.

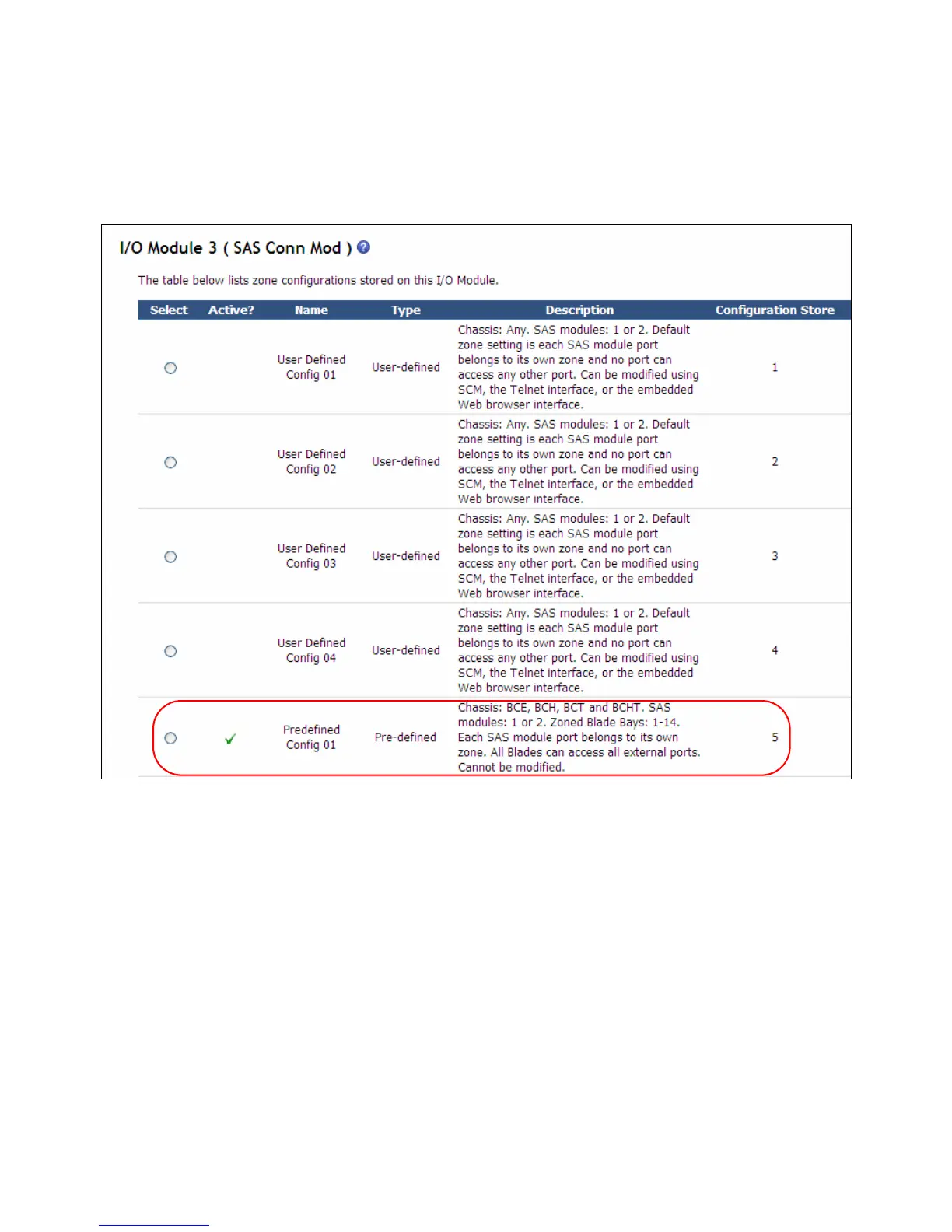

Figure 18-13 SAS Connectivity Module - Predefined Zones
