Microsoft Cluster configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24 pm

584 IBM System Storage DS3500: Introduction and Implementation Guide

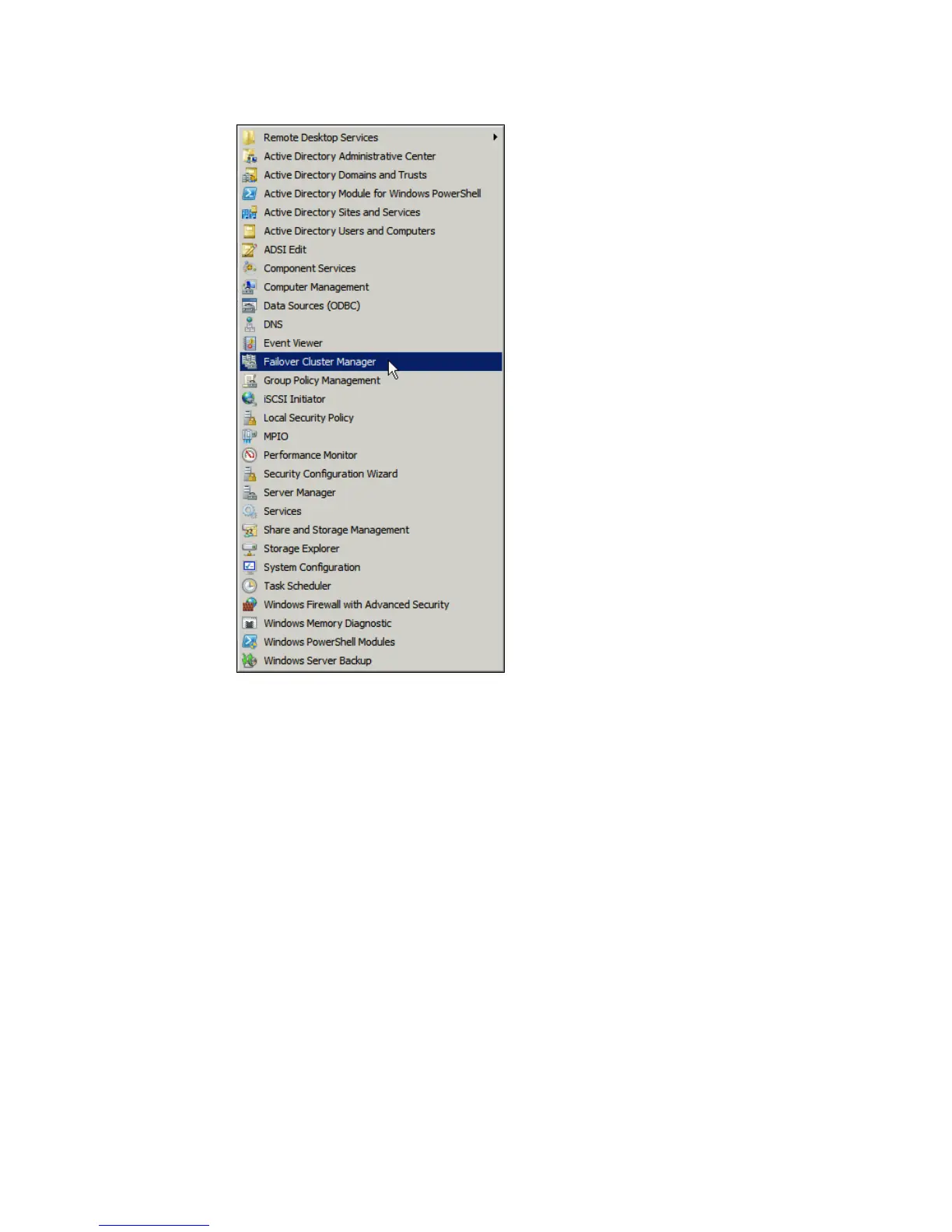

Figure 19-13 The Failover Cluster Manager

2. Confirm that Failover Cluster Management is selected and then, in the center pane

under Management, click Validate a Configuration as shown in Figure 19-14 on

page 585 and click Next to continue.
