Microsoft Cluster configuration with DS3500.fm Draft Document for Review March 28, 2011 12:24 pm

586 IBM System Storage DS3500: Introduction and Implementation Guide

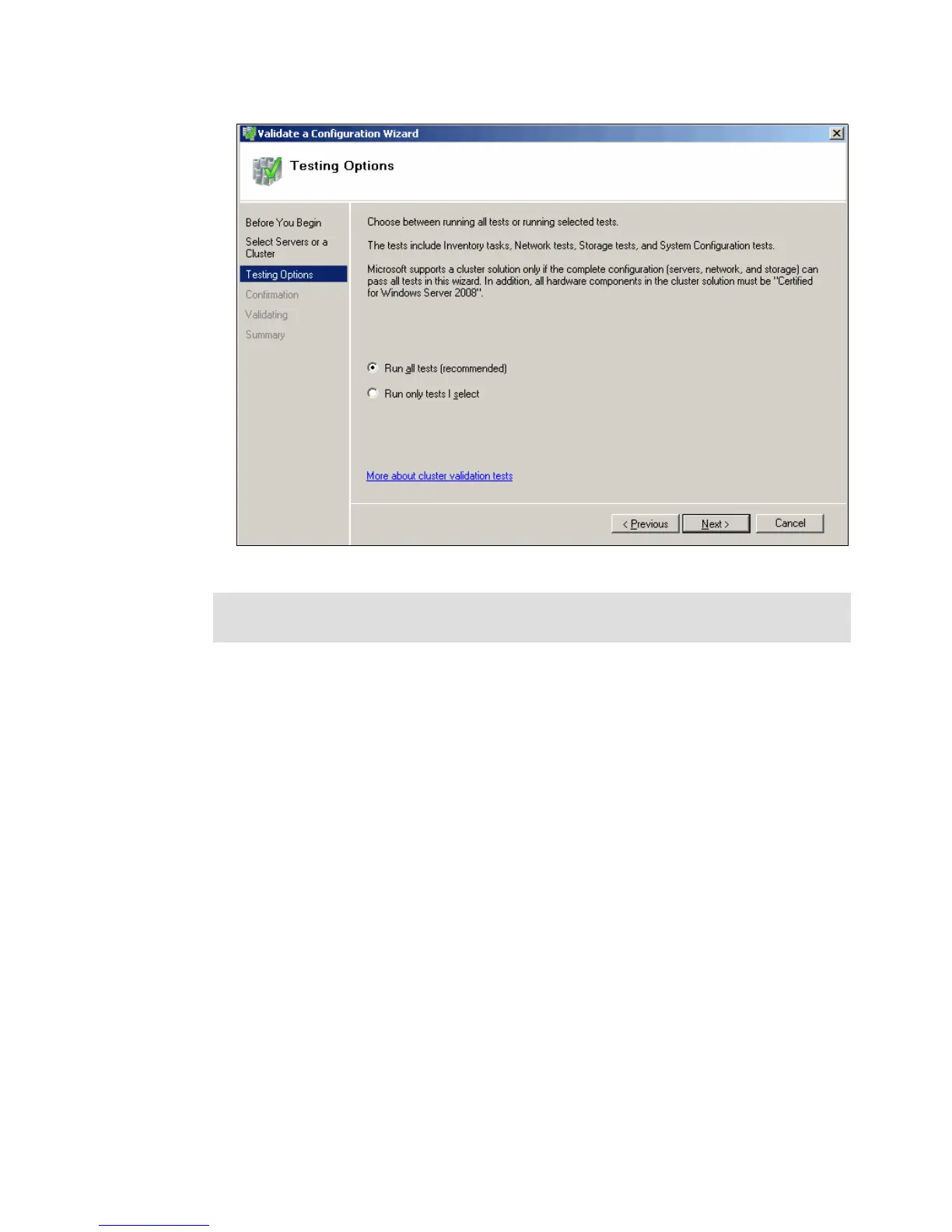

Figure 19-15 Testing Options

4. The Failover Cluster Validation Report shows the successful validation of our

configuration as shown in Figure 19-16 on page 587. Click Finish to complete the task.

Note: Microsoft supports a cluster solution only if the complete configuration can pass all

tests in validate a configuration wizard.
